PM15CSJ060 Mitsubishi - Intelligent Power Module

PM15CSJ060 Description

The PM15CSJ060 is an intelligent power module (IPM) made by Mitsubishi Electric. An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

We help engineers and repair technicians find parts like the PM15CSJ060, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Mitsubishi PM15CSJ060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM15CSJ060 is a 600 V, 15 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	15 A

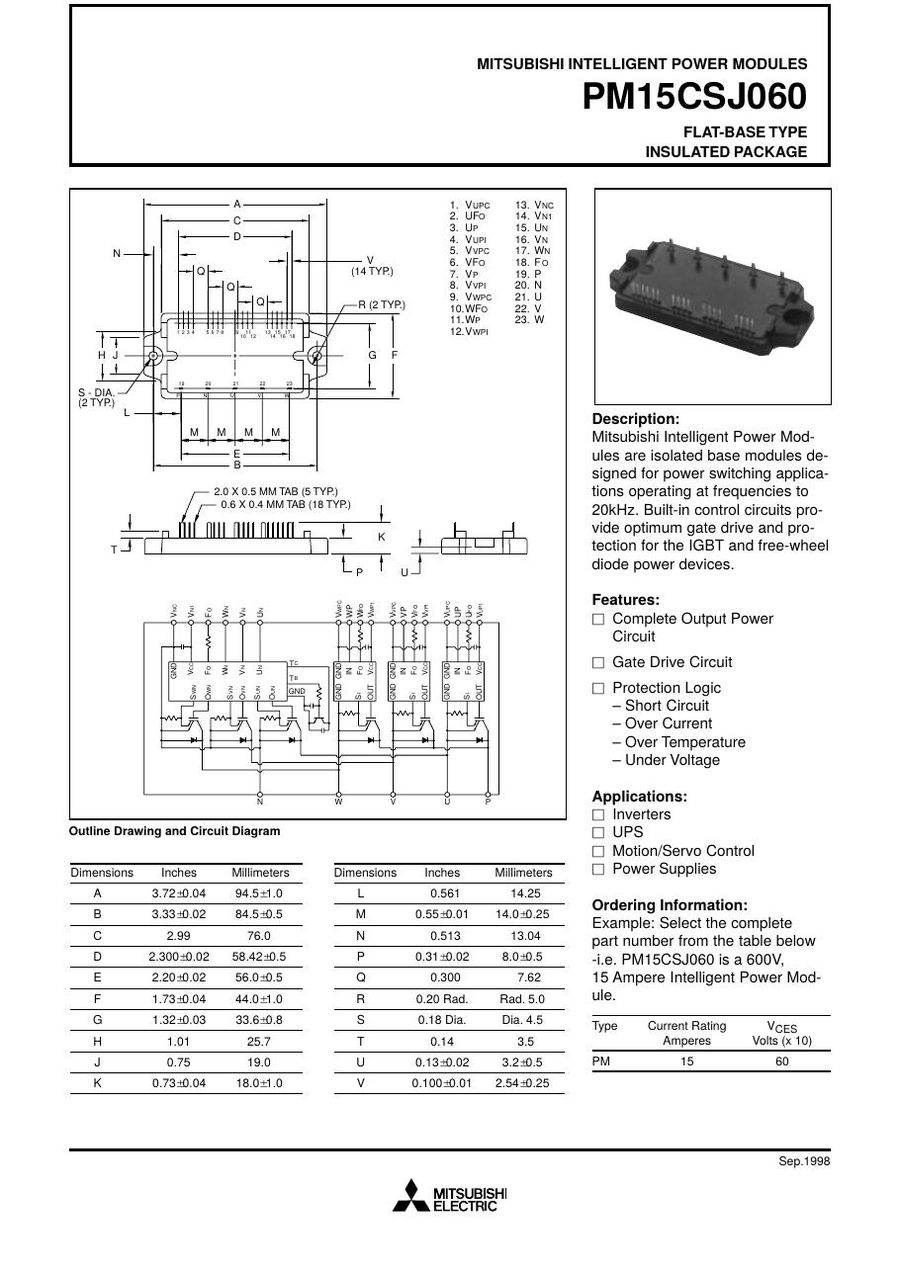

Datasheet	Available on this page (PDF)

PM15CSJ060 Video

Technical document (PDF)  |  Request a quote for PM15CSJ060 (reply within 24 hours)
