CM50TF-28H Mitsubishi - IGBT Power Transistor Module

CM50TF-28H Description

Mitsubishi Electric CM50TF-28H is an IGBT module rated at 1400 V and 50 A. It is built with six switches arranged as a three-phase bridge (6-in-1). Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the CM50TF-28H, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Mitsubishi CM50TF-28H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM50TF-28H is a 1,400 V, 50 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	1,400 V
Collector current (IC)	50 A

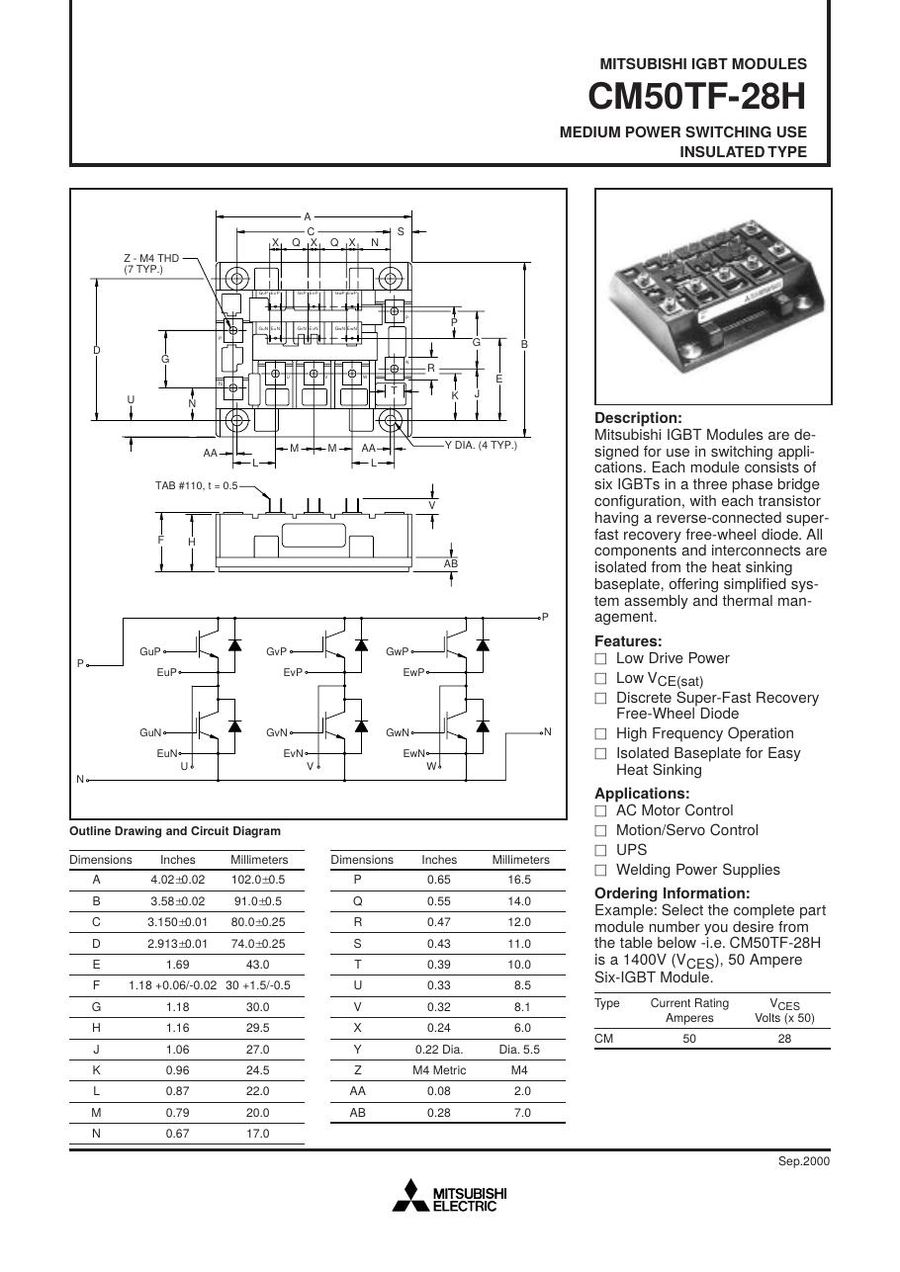

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM50TF-28H (reply within 24 hours)
