CM75TF-28HMitsubishi - IGBT Power Transistor Module

CM75TF-28H Description

The Mitsubishi Electric CM75TF-28H is an IGBT module rated at 1400 V and 75 A. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM75TF-28H.

Summary of Features

Target Applications

Mitsubishi CM75TF-28H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM75TF-28H is a 1,400 V, 75 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	1,400 V
Collector current (IC)	75 A
Isolation voltage	2,500 V
Datasheet	Available on this page (PDF)

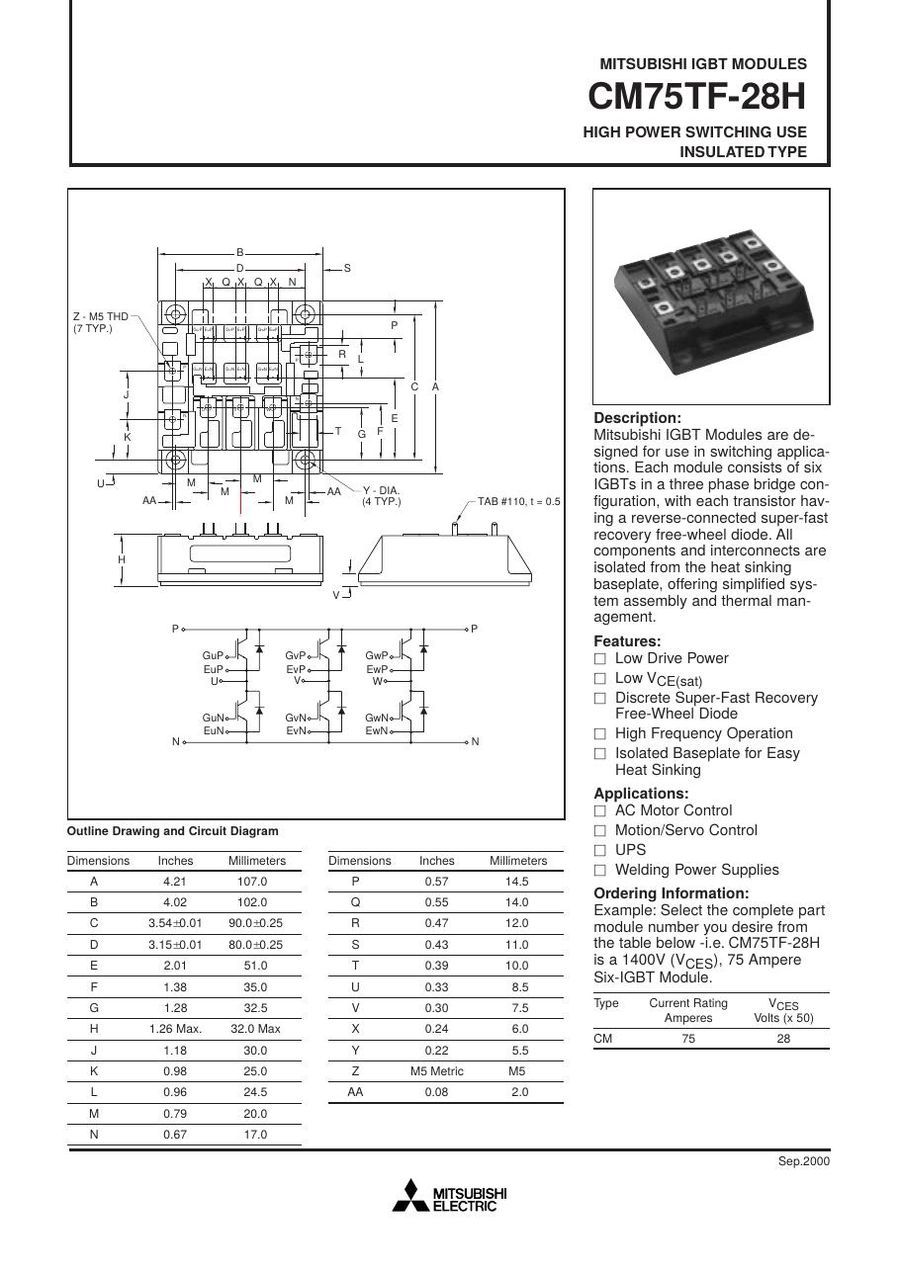

Download CM75TF-28H Datasheet

CM75TF-28H PDF Datasheet
