CM30TF-24H Mitsubishi - IGBT Module

CM30TF-24H Description

Mitsubishi Electric makes the CM30TF-24H, a 1200 V IGBT module. The module contains six switches arranged as a three-phase bridge (6-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the CM30TF-24H; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi CM30TF-24H is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

CM30TF-24H is a 1,200 V, 30 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	30 A
Isolation voltage	2,500 V

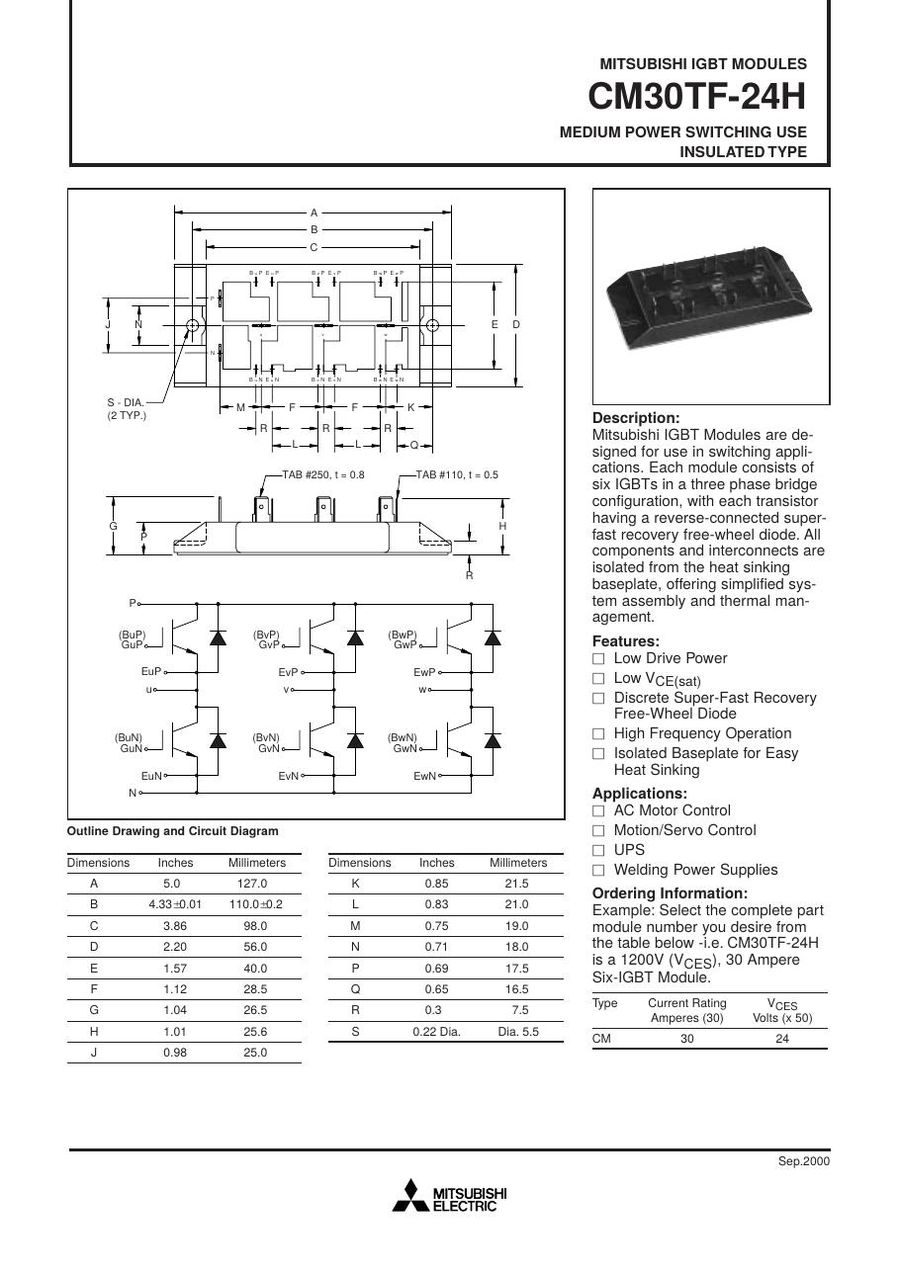

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM30TF-24H (reply within 24 hours)
