CM75TF-12H Mitsubishi - IGBT Module

CM75TF-12H Description

The CM75TF-12H from Mitsubishi Electric is an IGBT module with a 600 V / 75 A rating. It is built with six switches arranged as a three-phase bridge (6-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the CM75TF-12H; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi CM75TF-12H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM75TF-12H is a 600 V, 75 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	75 A

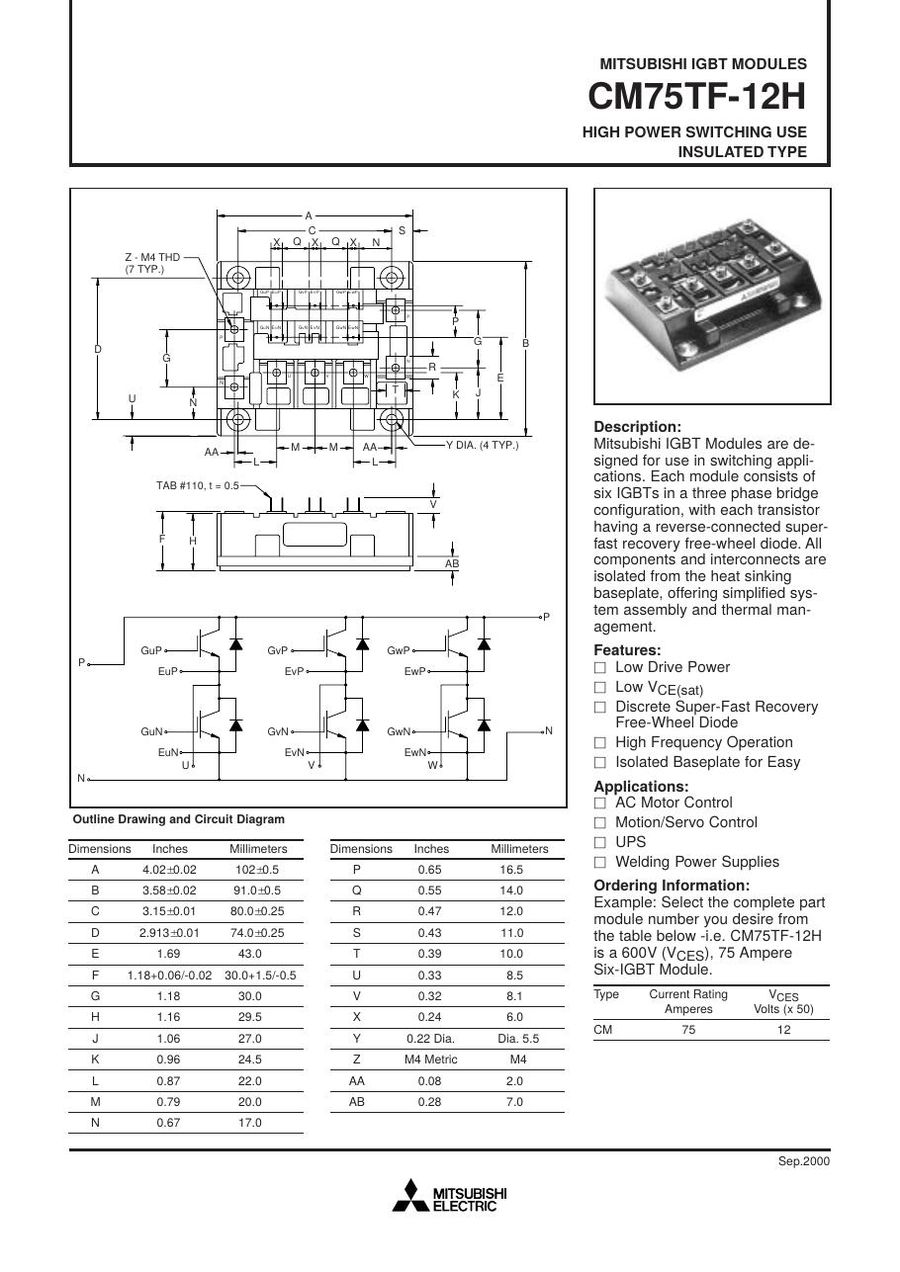

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM75TF-12H (reply within 24 hours)
