CM50TF-12E Mitsubishi - IGBT Module

CM50TF-12E Description

The Mitsubishi Electric CM50TF-12E is an IGBT module, rated for 600 V and 50 A. It is built with six switches arranged as a three-phase bridge (6-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the CM50TF-12E, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi CM50TF-12E is used for AC Motor Control, Motion/Servo Control, UPS, Welding, Power Supplies and Laser Power Supplies.

Key Specifications

CM50TF-12E is a 600 V, 50 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	50 A

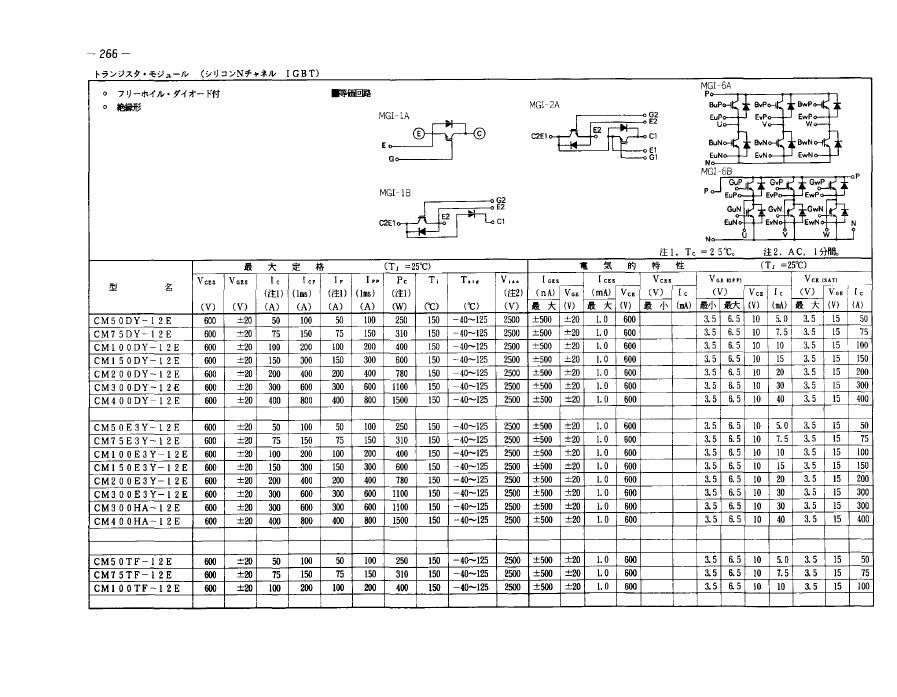

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM50TF-12E (reply within 24 hours)
