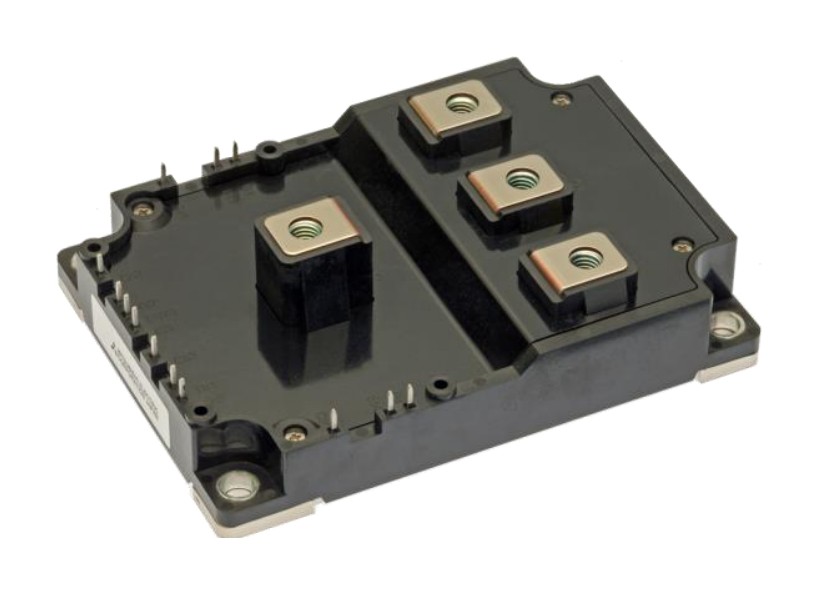

CM400ST-24T Mitsubishi - IGBT Module
CM400ST-24T Description
CM400ST-24T is a 1,200 V / 400 A 3-level four-pack (bridge & AC switch) IGBT module from Mitsubishi Electric, T series (7th generation IGBT). Datasheet ratings: 400 A DC at TC = 106 °C, VCE(sat) 1.60 V typ. at 400 A, 4,000 V RMS isolation. Typical applications: 3level inverter, UPS, PV.
USComponent supplies CM400ST-24T and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
CM400ST-24T is a 1,200 V / 400 A 3-level four-pack (bridge & AC switch) IGBT module from Mitsubishi Electric.
- 1,200 V / 400 A 3-level four-pack (bridge & AC switch) IGBT module
- T series (7th generation IGBT)
- Four-pack (bridge & AC switch) for 3-level inverters
- VCE(sat) 1.60 V typ. / 1.95 V max. at 400 A, Tj = 25 °C
- Maximum junction temperature 175 °C
- Isolation voltage 4,000 V RMS
- Bridge part (Tr1, Tr4): 1200 V
- AC switch part (Tr2, Tr3): 650 V
- Flat base Type
- Copper base plate
- Tin plating pin terminals
- RoHS Directive compliant
- Recognized under UL1557, File E323585
Target Applications
Mitsubishi CM400ST-24T is used for 3-level inverters, UPS and PV.
Key Specifications
CM400ST-24T is a 1,200 V / 400 A 3-level four-pack (bridge & AC switch) IGBT module from Mitsubishi Electric, T series (7th generation IGBT). Source: Mitsubishi Electric datasheet (January 2024).
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | IGBT module |
| Series | T series (7th generation IGBT) |
| Configuration | Four-pack (bridge & AC switch) for 3-level inverters |
| Collector-emitter voltage (VCES, bridge part (Tr1, Tr4)) | 1,200 V |
| Collector-emitter voltage (VCES, AC switch part (Tr2, Tr3)) | 650 V |
| Collector current (IC, DC, TC = 106 °C, bridge part (Tr1, Tr4)) | 400 A |
| Repetitive peak collector current (ICRM, pulse, bridge part (Tr1, Tr4)) | 800 A |
| Total power dissipation (Ptot, TC = 25 °C, bridge part (Tr1, Tr4)) | 1,970 W |
| VCE(sat) (terminal), IC = 400 A, VGE = 15 V, Tj = 25 °C, bridge part (Tr1, Tr4) | 1.60 V typ. / 1.95 V max. |
| Gate-emitter threshold voltage VGE(th), bridge part (Tr1, Tr4) | 5.4 / 6.0 / 6.6 V (min. / typ. / max.) |
| Isolation voltage (Visol, AC 1 min) | 4,000 V RMS |
| Maximum junction temperature (Tjmax) | 175 °C |
| Operating junction temperature | -40 to +150 °C |
| Mounting torque (to heat sink) | M5 screw: 2.5 - 3.5 N·m (typ. 3.0) |
| Mounting torque (main terminals) | M6 screw: 3.5 - 4.5 N·m (typ. 4.0) |
| Mass (typ.) | 560 g |
| Supply status (Mitsubishi) | In production |
| Applications (datasheet) | 3level inverter, UPS, PV |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for CM400ST-24T (reply within 24 hours)
