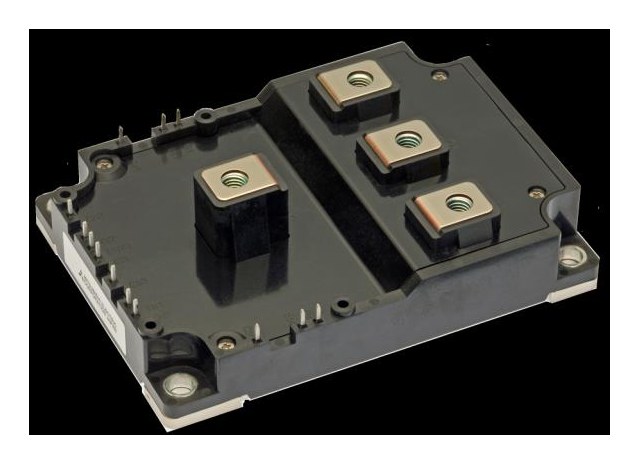

CM400ST-24S1 Mitsubishi - IGBT Module

CM400ST-24S1 Description

CM400ST-24S1 is a 1200 V / 400 A 3-level T-type IGBT module from Mitsubishi Electric (3 Level T-Type package). Typical applications: 3level inverter, UPS, PV.

USComponent supplies CM400ST-24S1 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM400ST-24S1 is used for 3level inverter, UPS, PV.

Key Specifications

CM400ST-24S1 is a 1200 V / 400 A 3-level T-type IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	3-level building block
Configuration	3-level T-type
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	400 A
Isolation voltage (Viso)	4,000 V RMS
Package	3 Level T-Type
Package size	82 x 115 mm
Supply status (Mitsubishi)	Discontinued
Datasheet	Available on this page (PDF)

Status: Mitsubishi Electric lists CM400ST-24S1 as discontinued. USComponent can still source CM400ST-24S1 and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for CM400ST-24S1 (reply within 24 hours)
