CM400DY-24NF Mitsubishi - IGBT Module

CM400DY-24NF Description

Rated at 1200 V and 400 A, the Mitsubishi Electric CM400DY-24NF is an IGBT module. Inside, it has two switches in a half-bridge (2-in-1) arrangement. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the CM400DY-24NF and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi CM400DY-24NF is used for General purpose inverters & Servo controls, etc.

Key Specifications

CM400DY-24NF is a 1,200 V, 400 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	400 A

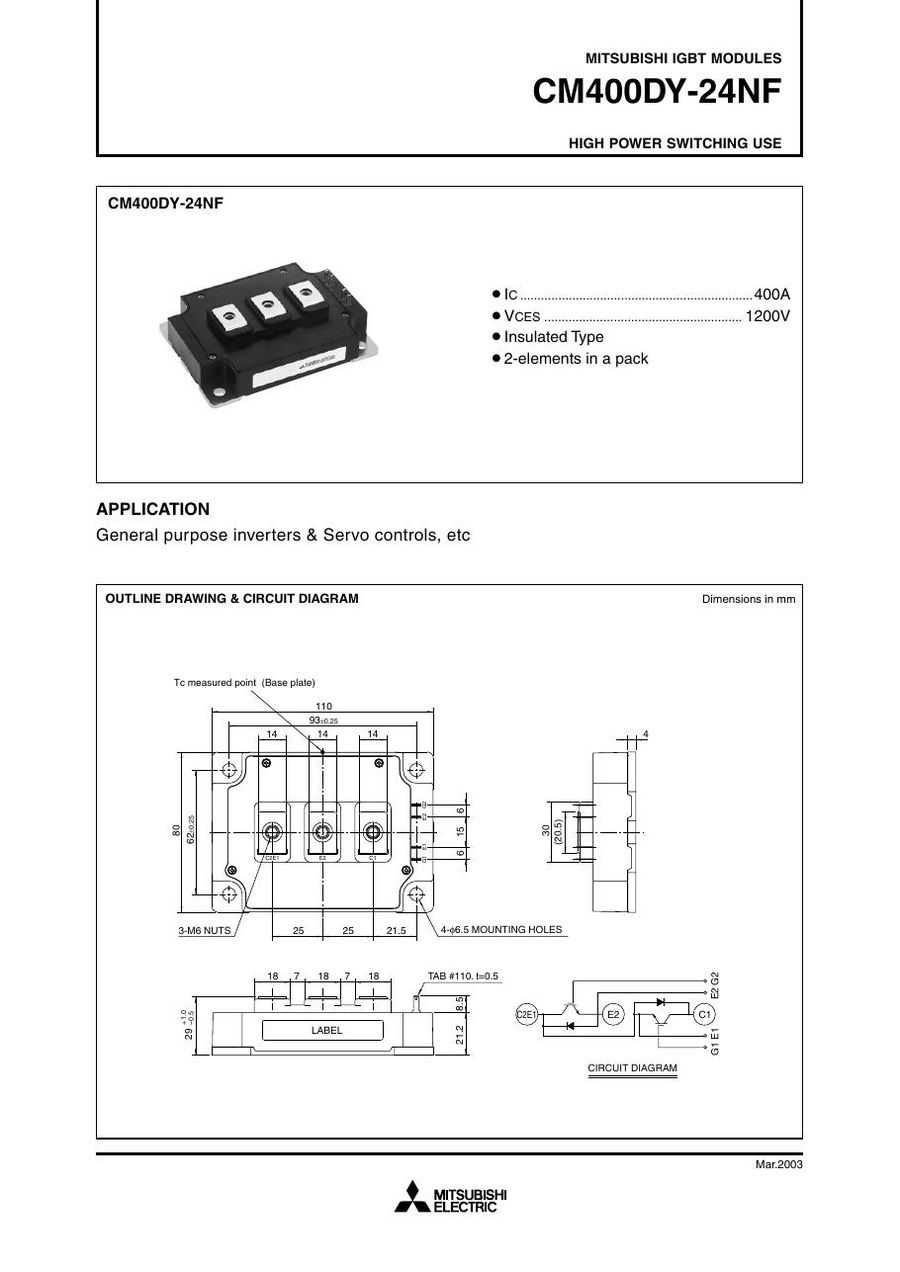

Datasheet	Available on this page (PDF)

CM400DY-24NF Video

Technical document (PDF)  |  Request a quote for CM400DY-24NF (reply within 24 hours)
