CM400HA-24E Mitsubishi - IGBT Power Transistor Module

CM400HA-24E Description

CM400HA-24E is a 1200 V, 400 A IGBT module made by Mitsubishi Electric. The module contains a single switch with its freewheeling diode (1-in-1). You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the CM400HA-24E and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi CM400HA-24E is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM400HA-24E is a 1,200 V, 400 A IGBT module, single (1-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single (1-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	400 A

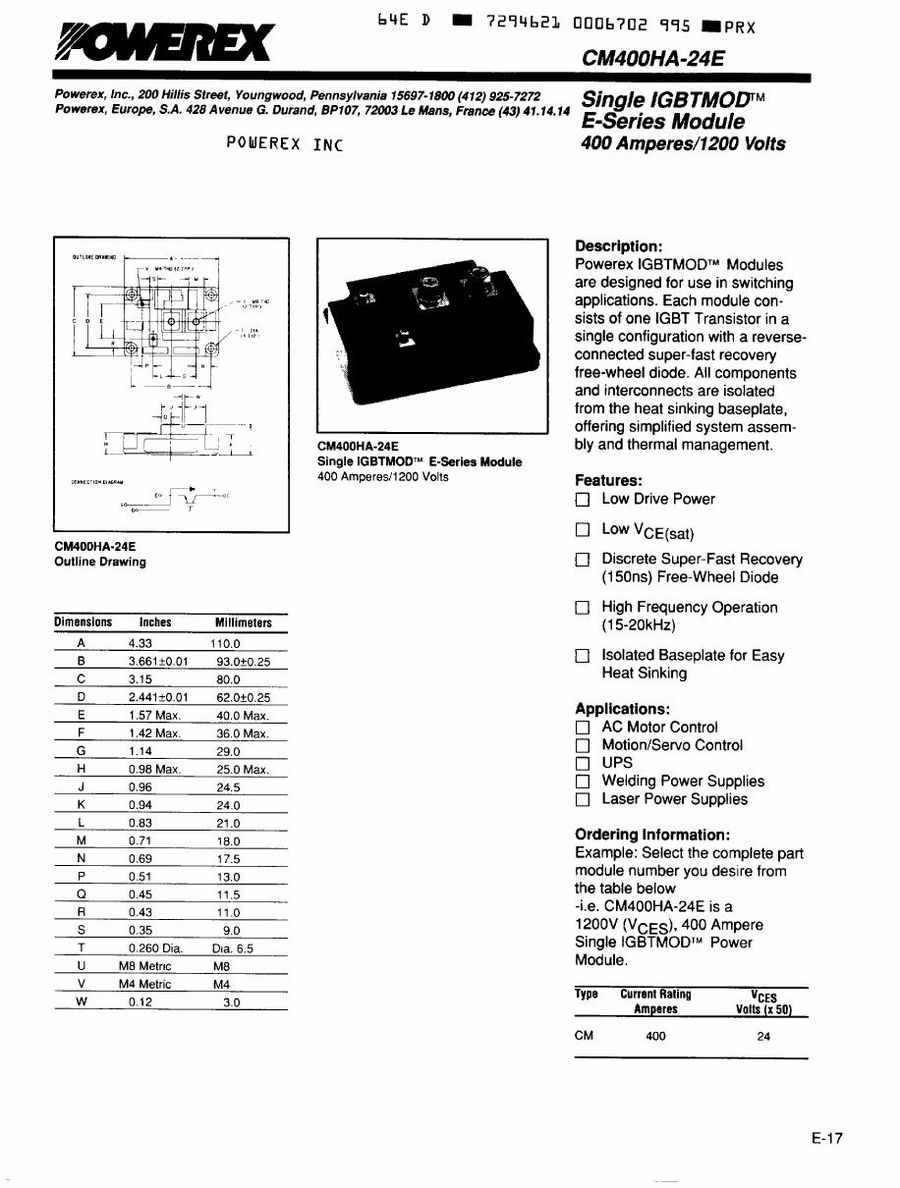

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM400HA-24E (reply within 24 hours)
