FS100R07N2E4_B11 Infineon - IGBT Module

Also written as: FS100R07N2E4-B11

Category: IGBT Modules

Specifications: 650V, 100A

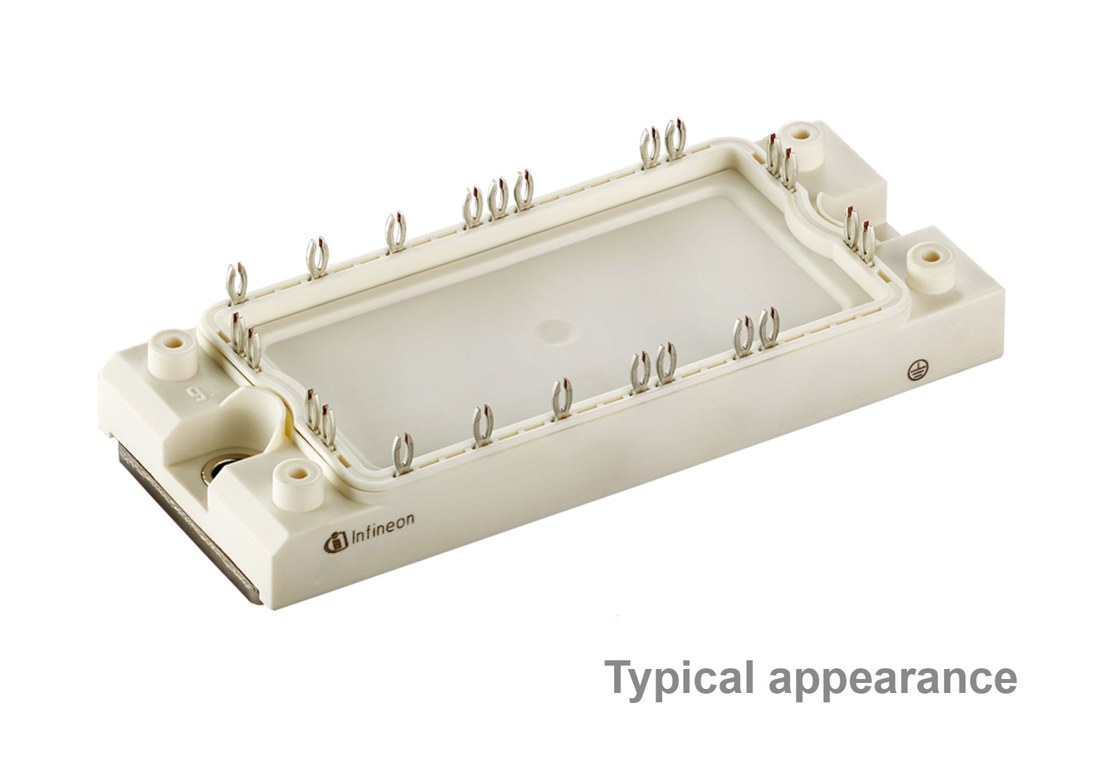

FS100R07N2E4_B11 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FS100R07N2E4_B11 Description

FS100R07N2E4_B11 is a 650 V / 100 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: motor drives.

USComponent supplies FS100R07N2E4_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Increased blocking voltage capability up to 650 V
  • High short-circuit capability
  • Trench IGBT 4
  • Integrated NTC temperature sensor
  • Copper base plate

Target Applications

Infineon FS100R07N2E4_B11 is used for Motor drives.

Key Specifications

FS100R07N2E4_B11 is a 650 V / 100 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EconoPACK 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)100 A
PackageEconoPACK 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS100R07N2E4_B11 (reply within 24 hours)
