FP150R12KT4P Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 150A

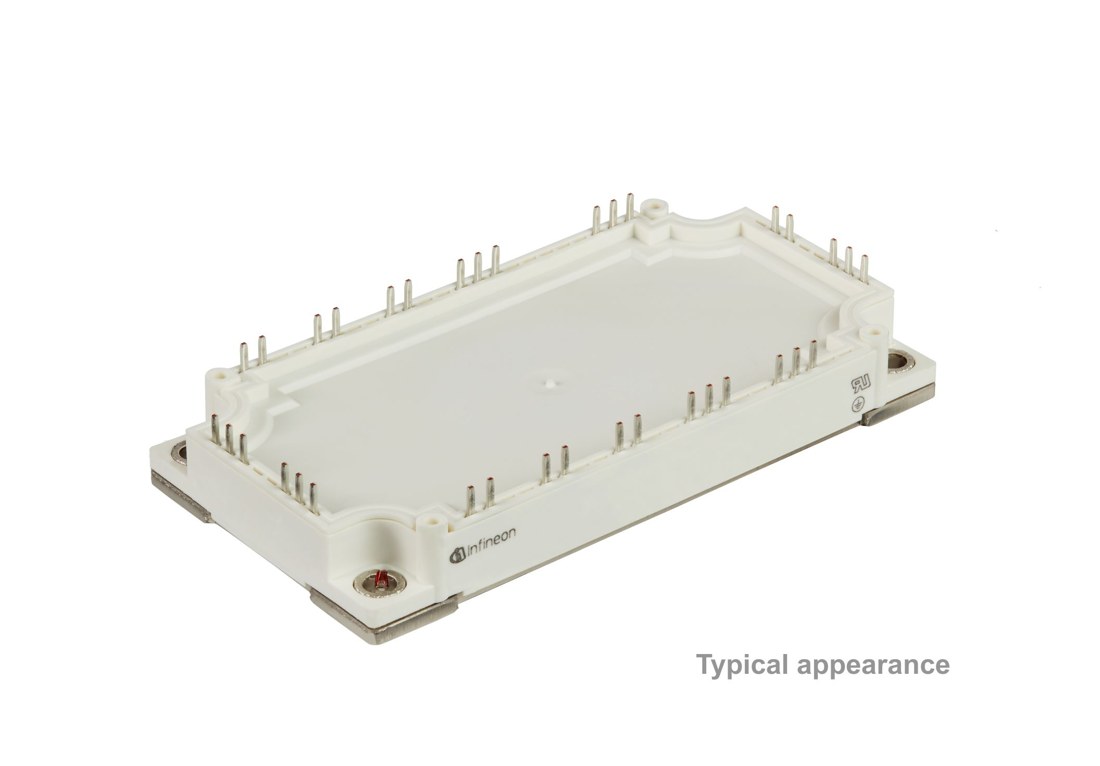

FP150R12KT4P Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FP150R12KT4P Description

FP150R12KT4P is a 1200 V / 150 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: auxiliary inverters, Motor drives, Servo drives.

USComponent supplies FP150R12KT4P and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • VCE,sat with positive temperature coefficient
  • High power density
  • Integrated NTC temperature sensor
  • Copper base plate

Target Applications

Infineon FP150R12KT4P is used for Auxiliary inverters, Motor drives, Servo drives.

Key Specifications

FP150R12KT4P is a 1200 V / 150 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EconoPIM 3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM (rectifier + brake + inverter)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)150 A
PackageEconoPIM 3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FP150R12KT4P (reply within 24 hours)
