FP15R12W1T4 Infineon - IGBT Module

FP15R12W1T4 Description

The Infineon Technologies FP15R12W1T4 is an IGBT module, rated for 1200 V. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the FP15R12W1T4 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Infineon FP15R12W1T4 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FP15R12W1T4 is a 1,200 V, 15 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	15 A

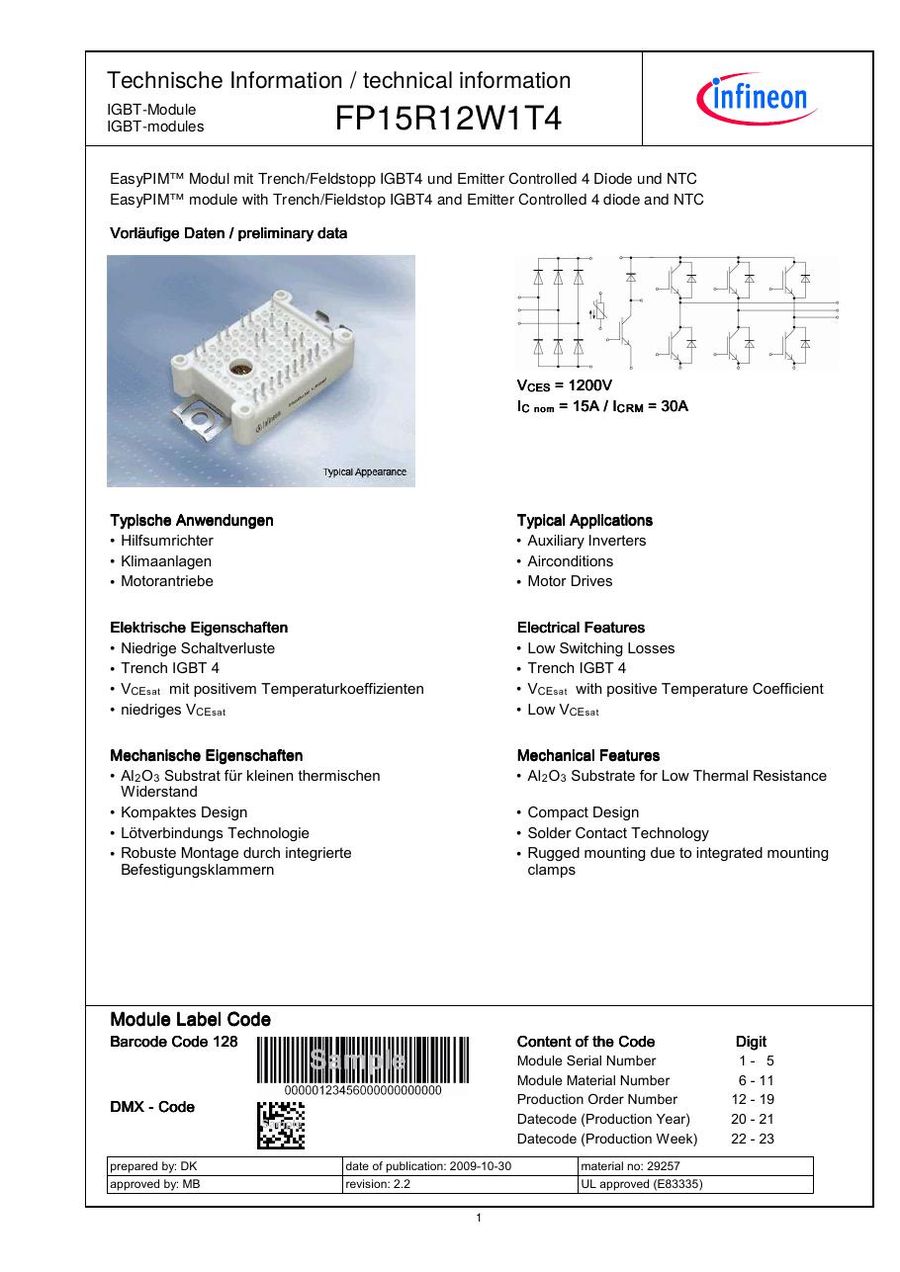

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FP15R12W1T4 (reply within 24 hours)
