FP35R12W2T7P Infineon - IGBT Module

FP35R12W2T7P Description

FP35R12W2T7P is an Infineon 1,200 V / 35 A PIM (converter-brake-inverter) IGBT module, EasyPIM 2B.

USComponent supplies FP35R12W2T7P and other Infineon power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FP35R12W2T7P is used for Auxiliary inverters, air conditioning, motor drives.

Key Specifications

FP35R12W2T7P is an Infineon 1,200 V / 35 A PIM (converter-brake-inverter) IGBT module, EasyPIM 2B. Key data from the Infineon datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter-brake-inverter) IGBT module
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	35 A
Technology	TRENCHSTOP IGBT7 with emitter controlled 7 diode, overload operation up to 175 °C
Package	EasyPIM 2B (AG-EASY2B)
Feature	Pre-applied thermal interface material (P version)
Feature	Integrated NTC temperature sensor

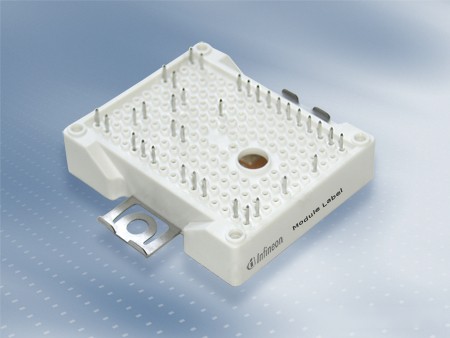

Note: Datasheet and picture shown are those of FP35R12W2T7: FP35R12W2T7P is the same module with pre-applied thermal interface material (P).

Status: end of life announced by Infineon (Product Discontinuation PD_26_110_01, issued 2026-07-02: last order date 2027-01-15, last delivery date 2027-07-15). Infineon offers a replacement on request only. USComponent can source FP35R12W2T7P and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for FP35R12W2T7P (reply within 24 hours)
