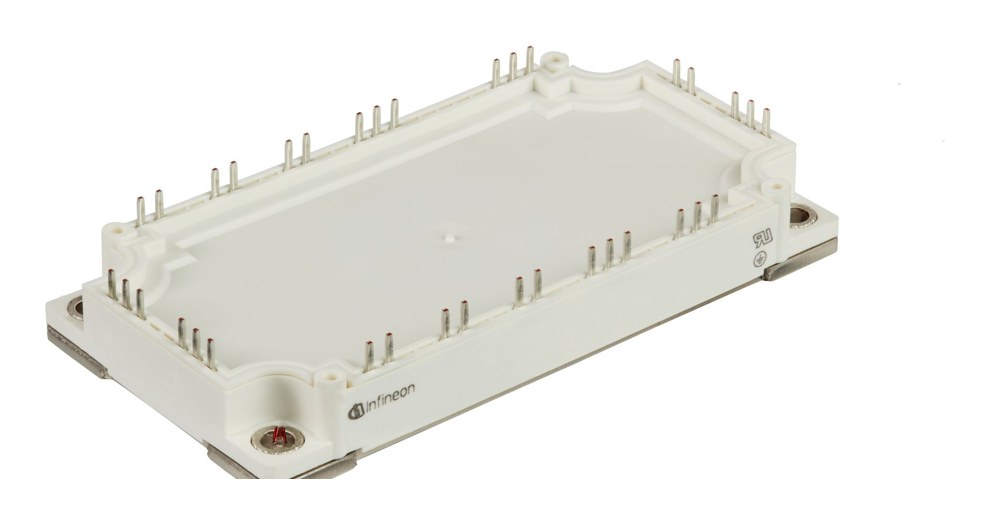

FP150R12N3T7 Infineon - IGBT Module

FP150R12N3T7 Description

FP150R12N3T7 is a 1200 V, 150 A Infineon EconoPIM 3 IGBT module (pim), used for motor drives, auxiliary inverters and servo drives.

USComponent supplies FP150R12N3T7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FP150R12N3T7 is used for auxiliary inverters, motor drives and servo drives.

Key Specifications

FP150R12N3T7 is a 1,200 V, 150 A Infineon IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (rectifier + brake chopper + 3-phase inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC nom)	150 A
Technology	TRENCHSTOP IGBT7 with Emitter Controlled 7 diode
Package	EconoPIM 3
