F4-250R17MP4_B11 Infineon - IGBT Module

F4-250R17MP4_B11 Description

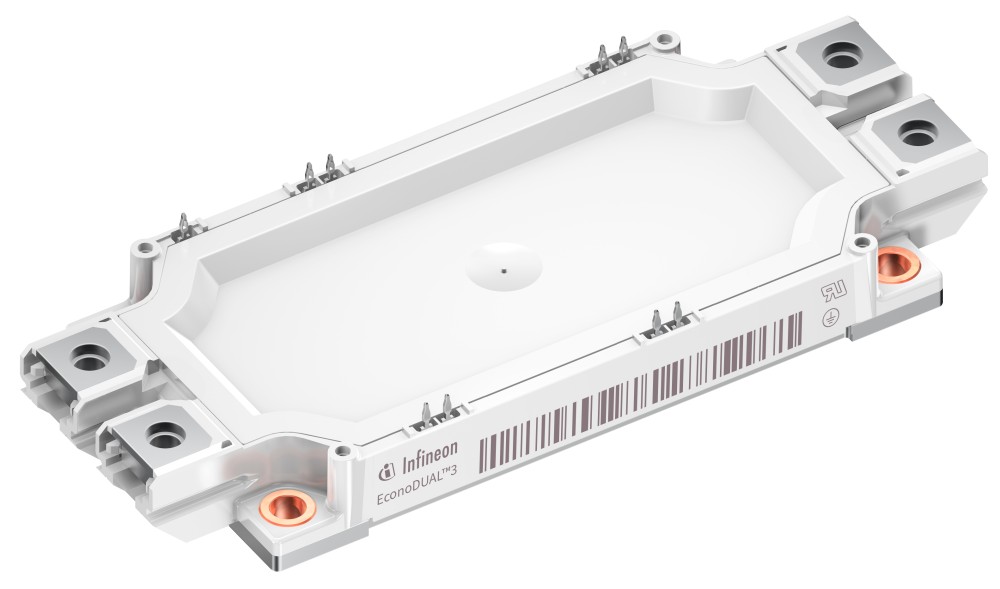

F4-250R17MP4_B11 is an Infineon 1,700 V / 250 A fourpack (two half-bridges) IGBT module, EconoDUAL 3.

USComponent supplies F4-250R17MP4_B11 and other Infineon power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon F4-250R17MP4_B11 is used for Wind turbines, medium-voltage converters, high-power converters.

Key Specifications

F4-250R17MP4_B11 is an Infineon 1,700 V / 250 A fourpack (two half-bridges) IGBT module, EconoDUAL 3. Key data from the Infineon datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Fourpack (two half-bridges) IGBT module
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	250 A
Technology	Trench/Fieldstop IGBT4 with emitter controlled 3 diode, Tvj op 150 °C
Package	EconoDUAL 3 (AG-ECONOD)
Feature	PressFIT contact technology
Feature	Isolated base plate, 3.4 kV insulation

Status: discontinued by Infineon (Product Discontinuation PD_225_23, last order date 2024-01-15). Infineon lists no direct replacement for this part. USComponent can still source the original F4-250R17MP4_B11.
