F4-200R06KL4 Infineon - IGBT

F4-200R06KL4 Description

The Infineon Technologies F4-200R06KL4 is an IGBT, rated for 600 V and 225 A. It comes in a 4-pack (H-bridge) configuration. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

Need the F4-200R06KL4? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Infineon F4-200R06KL4 is used for high speed switching, low saturation voltage, voltage drive, isolated package.

Key Specifications

F4-200R06KL4 is a 600 V, 200 A IGBT module, 4-pack (H-bridge) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	4-pack (H-bridge)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	200 A

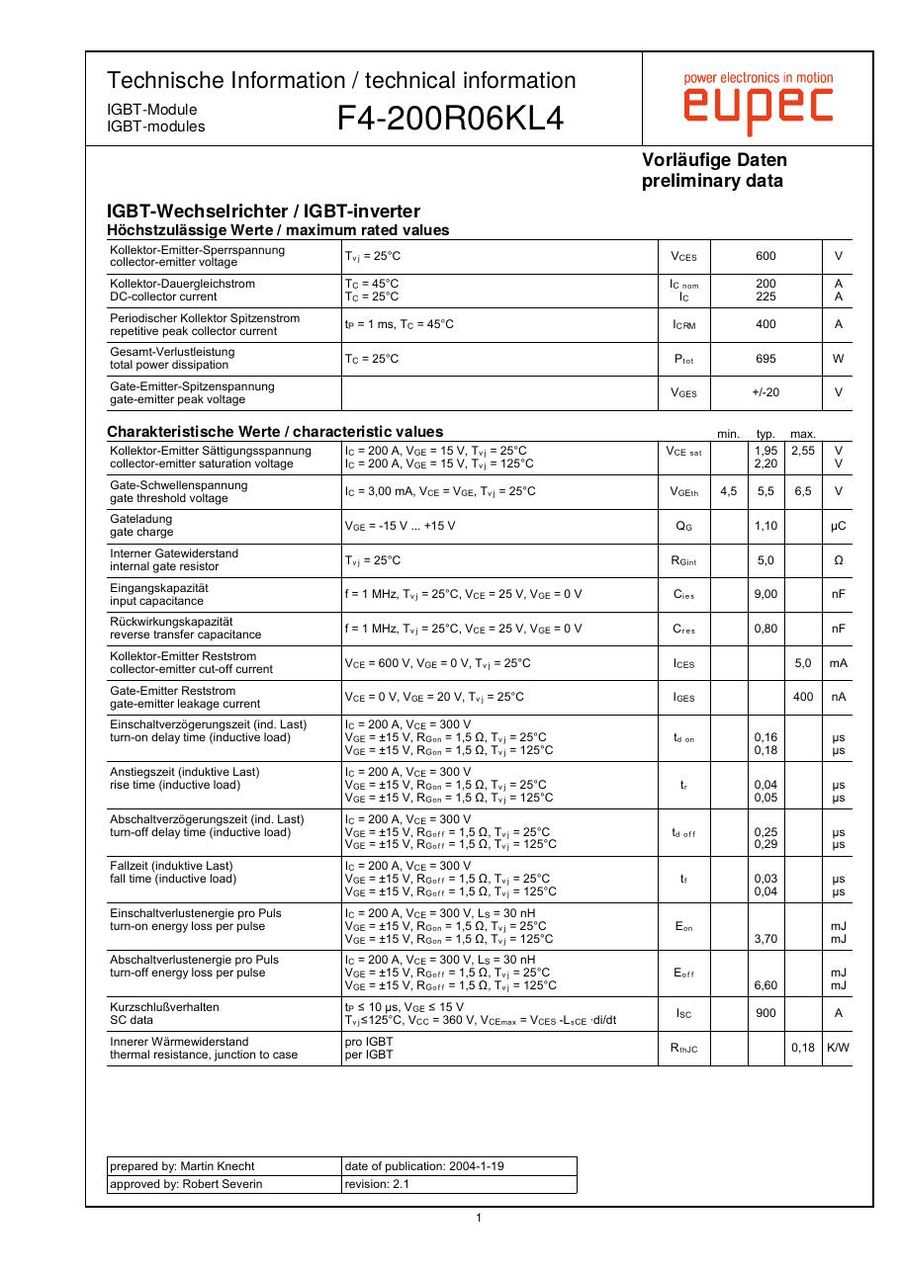

Datasheet	Available on this page (PDF)

Status: discontinued by Infineon (Product Discontinuation PD_257_19, last order date 2020-06-30). Infineon lists no direct replacement for this part. USComponent can still source the original F4-200R06KL4.

Technical document (PDF)  |  Request a quote for F4-200R06KL4 (reply within 24 hours)
