F4-100R17N3P4_B58 Infineon - IGBT Module

Also written as: F4-100R17N3P4-B58

Category: IGBT Modules

Specifications: 1700V, 100A

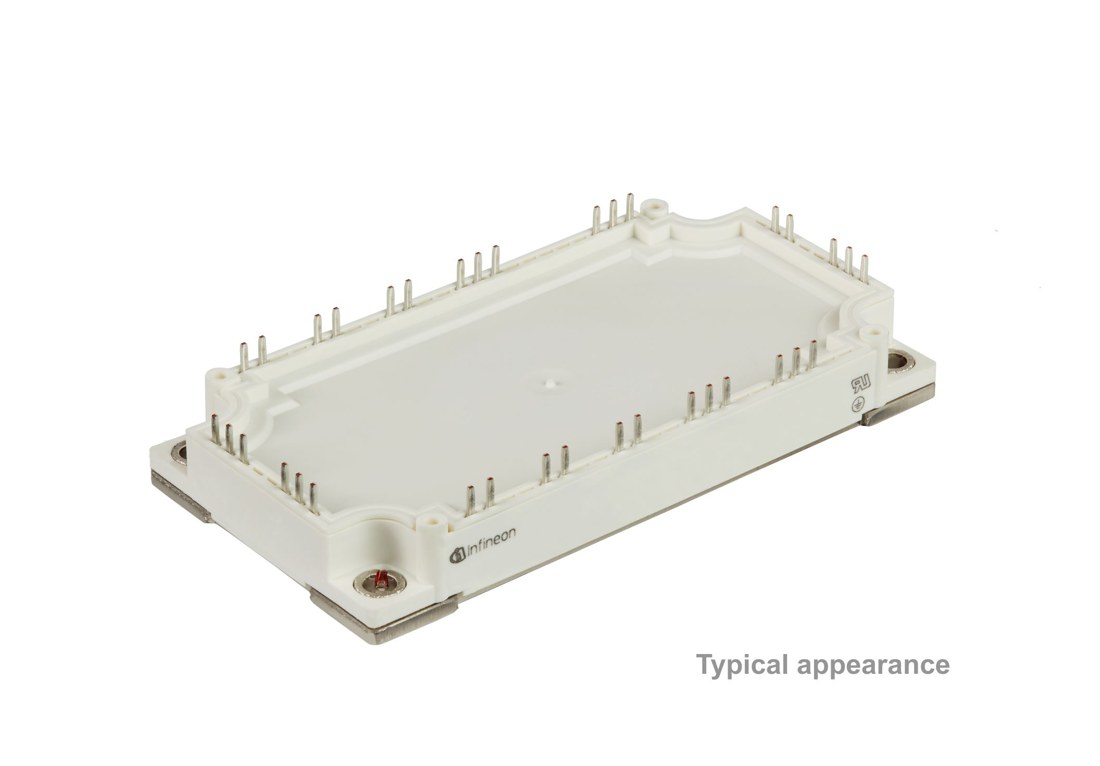

F4-100R17N3P4_B58 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F4-100R17N3P4_B58 Description

F4-100R17N3P4_B58 is a 1700 V / 100 A four-pack (H-bridge) IGBT module from Infineon Technologies. Typical applications: high-power converters, Medium-voltage converters.

USComponent supplies F4-100R17N3P4_B58 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Trench IGBT 4
  • VCE,sat with positive temperature coefficient
  • Integrated NTC temperature sensor
  • Standard housing

Target Applications

Infineon F4-100R17N3P4_B58 is used for High-power converters, Medium-voltage converters.

Key Specifications

F4-100R17N3P4_B58 is a 1700 V / 100 A four-pack (H-bridge) IGBT module from Infineon Technologies (EconoPACK 3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationFour-pack (H-bridge)
Collector-emitter voltage (VCES)1700 V
Nominal collector current (IC nom)100 A
PackageEconoPACK 3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F4-100R17N3P4_B58 (reply within 24 hours)
