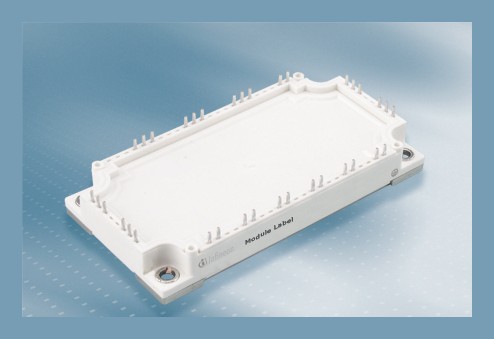

F4-100R17N3E4 Infineon - IGBT Module

F4-100R17N3E4 Description

F4-100R17N3E4 is a 1700 V, 100 A Infineon h-bridge IGBT module (IGBT4 (Trench/Fieldstop), Emitter Controlled diode), used for auxiliary converters, UPS and industrial power supplies.

USComponent supplies F4-100R17N3E4 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon F4-100R17N3E4 is used for Auxiliary converters, UPS and industrial power supplies.

Key Specifications

F4-100R17N3E4 is a 1,700 V, 100 A Infineon IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	H-bridge (4-pack) with NTC
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	100 A
Technology	IGBT4 (Trench/Fieldstop), Emitter Controlled diode
Package	EconoPACK 3
