F3L225R07W2H3P_B63 Infineon - IGBT Module

Also written as: F3L225R07W2H3P-B63

Category: IGBT Modules

Specifications: 650V, 125A

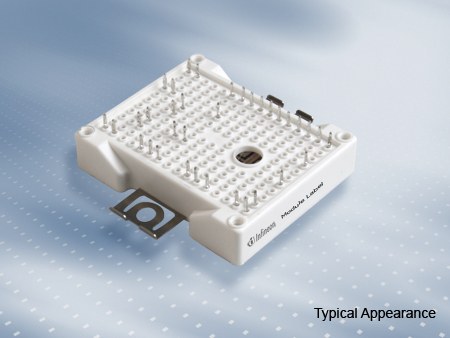

F3L225R07W2H3P_B63 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L225R07W2H3P_B63 Description

F3L225R07W2H3P_B63 is a 650 V / 125 A 3-level IGBT module from Infineon Technologies. Typical applications: motor drives, Solar applications, UPS systems.

USComponent supplies F3L225R07W2H3P_B63 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High speed IGBT H3
  • 2.5 kV AC 1min insulation
  • Integrated NTC temperature sensor
  • PressFIT contact technology
  • RoHS compliant
  • Pre-applied Thermal Interface Material

Target Applications

Infineon F3L225R07W2H3P_B63 is used for Motor drives, Solar applications, UPS systems.

Key Specifications

F3L225R07W2H3P_B63 is a 650 V / 125 A 3-level IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)125 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L225R07W2H3P_B63 (reply within 24 hours)
