F3L25R12W1T4_B27 Infineon - IGBT Module

Also written as: F3L25R12W1T4-B27

Category: IGBT Modules

Specifications: 1200V, 25A

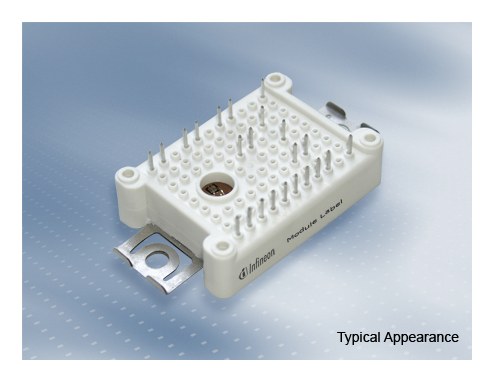

F3L25R12W1T4_B27 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

F3L25R12W1T4_B27 Description

F3L25R12W1T4_B27 is a 1200 V / 25 A 3-level IGBT module from Infineon Technologies. Typical applications: solar Applications.

USComponent supplies F3L25R12W1T4_B27 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low inductive design
  • Low Switching Losses
  • Low Vcesat
  • Al2O33 Substrate with Low Thermal Resistance
  • Compact design
  • PressFIT Contact Technology
  • Rugged mounting due to integrated mounting

Target Applications

Infineon F3L25R12W1T4_B27 is used for Solar Applications.

Key Specifications

F3L25R12W1T4_B27 is a 1200 V / 25 A 3-level IGBT module from Infineon Technologies. Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)25 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L25R12W1T4_B27 (reply within 24 hours)
