F3L300R07PE4P Infineon - IGBT Module

Category: IGBT Modules

Specifications: 650V, 300A

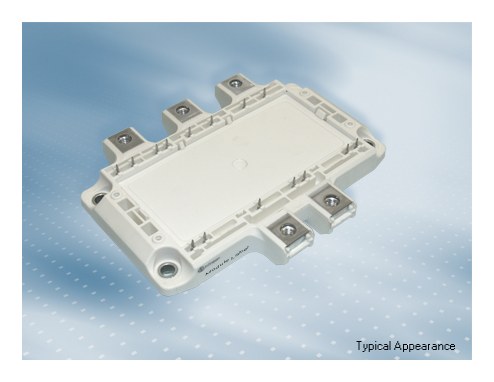

F3L300R07PE4P Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

F3L300R07PE4P Description

F3L300R07PE4P is a 650 V / 300 A 3-level IGBT module from Infineon Technologies.

USComponent supplies F3L300R07PE4P and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Increased blocking voltage capability up to 650V
  • Extended operating temperature Tvj,op
  • Trench IGBT 4
  • Vcesat with positive temperature coefficient
  • 4 kV AC 1min insulation
  • High mechanical robustness
  • Integrated NTC temperature sensor

Target Applications

Infineon F3L300R07PE4P finds applications in various industries and systems where high power switching is required.

Key Specifications

F3L300R07PE4P is a 650 V / 300 A 3-level IGBT module from Infineon Technologies (EconoPACK 4 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)300 A
PackageEconoPACK 4
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for F3L300R07PE4P (reply within 24 hours)
