2DI75D-050A Description

The Fuji Electric 2DI75D-050A is a Darlington transistor module, rated for 600 V and 75 A. Inside, it has two switches in a half-bridge (2-in-1) arrangement. It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

Need the 2DI75D-050A? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Fuji Electric 2DI75D-050A is used for High power switching, AC motor controls, DC motor controls, uninterruptible power supply.

Key Specifications

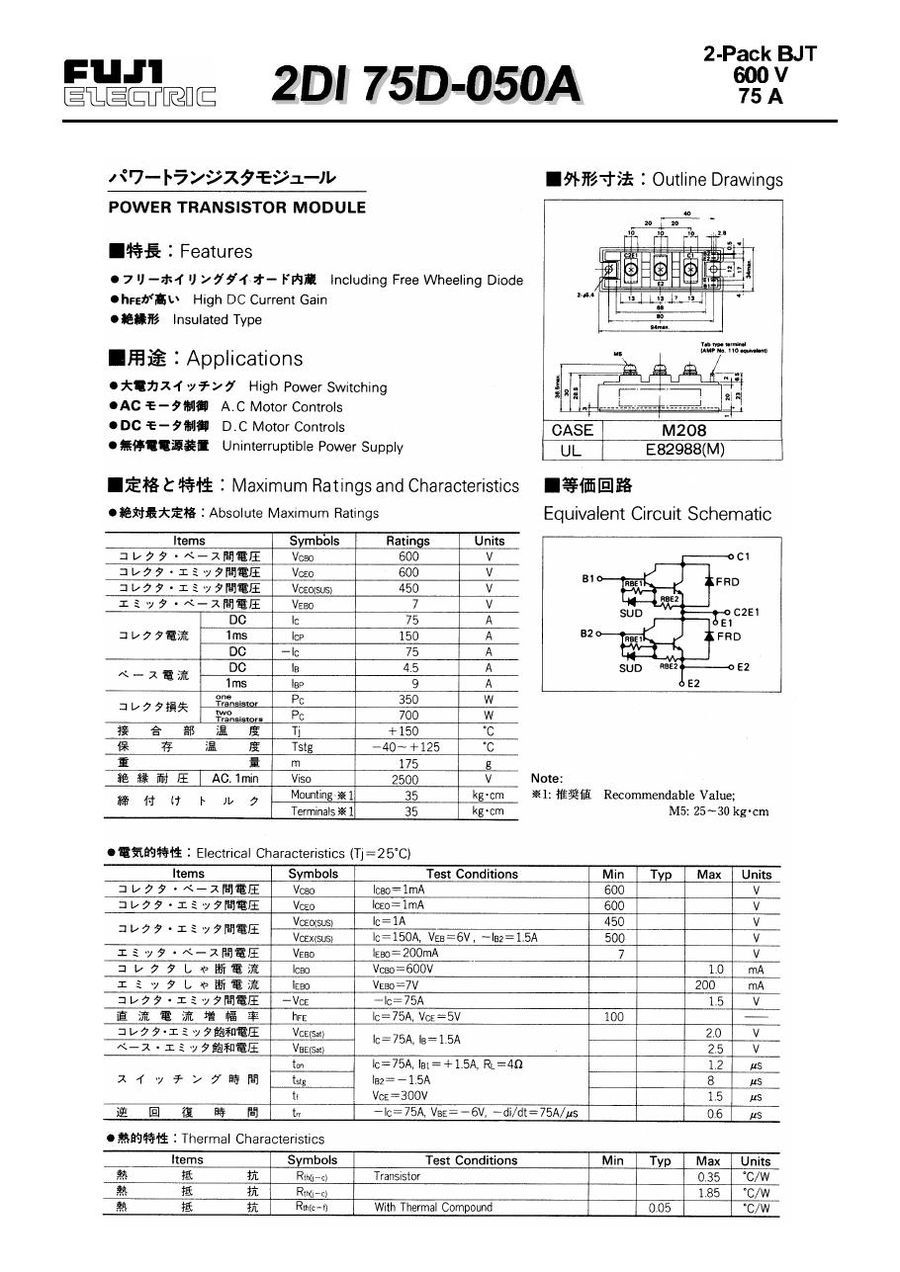

2DI75D-050A is a 600 V, 75 A power transistor module (Darlington) from Fuji Electric: 2-pack: 2 darlington transistors with free wheeling diodes (half bridge) - see equivalent circuit. Source: Fuji Electric datasheet 2DI 75D-050A (2-Pack BJT, 600 V, 75 A).

Parameter	Value
Manufacturer	Fuji Electric
Product type	Power transistor module (Darlington)
Configuration	2-pack: 2 Darlington transistors with free wheeling diodes (half bridge) - see equivalent circuit
Collector-base voltage VCBO	600 V
Collector-emitter voltage VCEO / VCEO(SUS) / VCEX(SUS)	600 V / 450 V / 500 V min (IC = 150 A, VEB = 6 V)
Emitter-base voltage VEBO	7 V
Collector current IC / ICP (1 ms) / -IC	75 A / 150 A / 75 A
Base current IB / IBP (1 ms)	4.5 A / 9 A
Collector power dissipation PC	350 W one transistor; 700 W two transistors
Junction temperature Tj	+150 °C
Storage temperature	-40 to +125 °C
Isolation voltage Viso	AC 2500 V (1 min)
DC current gain hFE	100 min (IC = 75 A, VCE = 5 V)
VCE(sat) / VBE(sat)	2.0 V / 2.5 V max (IC = 75 A, IB = 1.5 A)
Collector-emitter voltage -VCE (diode)	1.5 V max (-IC = 75 A)
Switching time (max)	ton 1.2 µs, tstg 8 µs, tf 1.5 µs (IC = 75 A, VCE = 300 V); trr 0.6 µs
Collector cut-off current ICBO	1.0 mA max (VCBO = 600 V)
Thermal resistance Rth(j-c) max	0.35 °C/W transistor; 1.85 °C/W diode; Rth(c-f) 0.05 °C/W typ
Mounting torque	Mounting / terminals: 35 kg·cm (recommended M5: 25 - 30 kg·cm)
Weight	175 g
UL	E82988 (M)
Case	M208
Datasheet	Available on this page (PDF)
