2DI75M-050Fuji Electric - Darlington Module

2DI75M-050 Description

The Fuji Electric 2DI75M-050 is a Darlington transistor module rated at 600 V and 75 A. Typical applications for this type of device include motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI75M-050.

Summary of Features

Target Applications

Fuji Electric 2DI75M-050 is used for high-power traction inverters and choppers, medium-voltage motor drives, static VAR compensators and other high-power converters.

Key Specifications

2DI75M-050 is a 500 V, 75 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	500 V
Collector current (IC)	75 A
Datasheet	Available on this page (PDF)

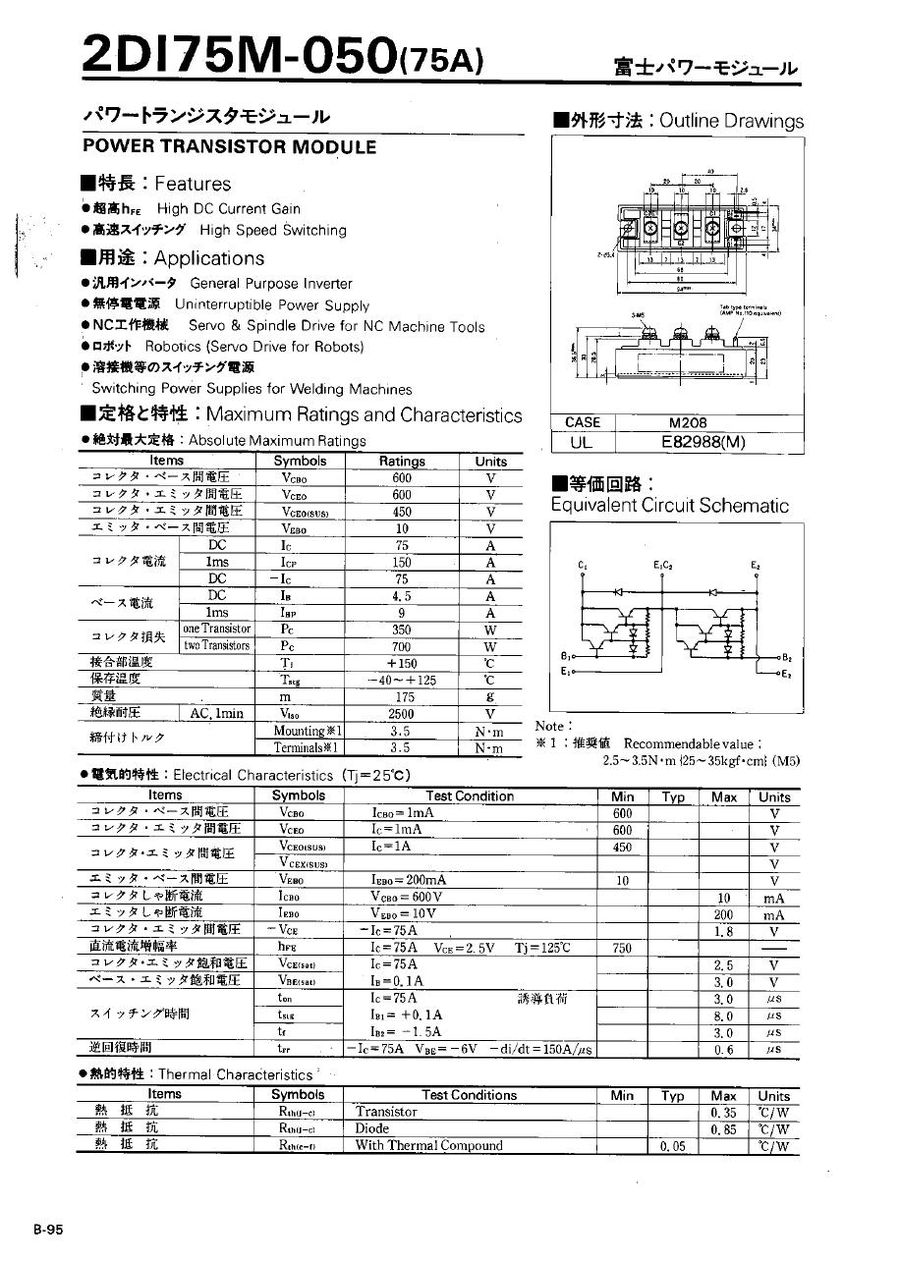

Download 2DI75M-050 Datasheet

2DI75M-050 PDF Datasheet
