2DI75Z-100 Fuji Electric - Bipolar Transistor Module

2DI75Z-100 Description

The 2DI75Z-100 from Fuji Electric is a Darlington transistor module with a 1000 V / 75 A rating. The module contains two switches in a half-bridge (2-in-1) arrangement. It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

Looking for a replacement 2DI75Z-100? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Fuji Electric 2DI75Z-100 is used for high-power traction inverters and choppers, medium-voltage motor drives, static VAR compensators and other high-power converters.

Key Specifications

2DI75Z-100 is a 1,000 V, 75 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	1,000 V
Collector current (IC)	75 A

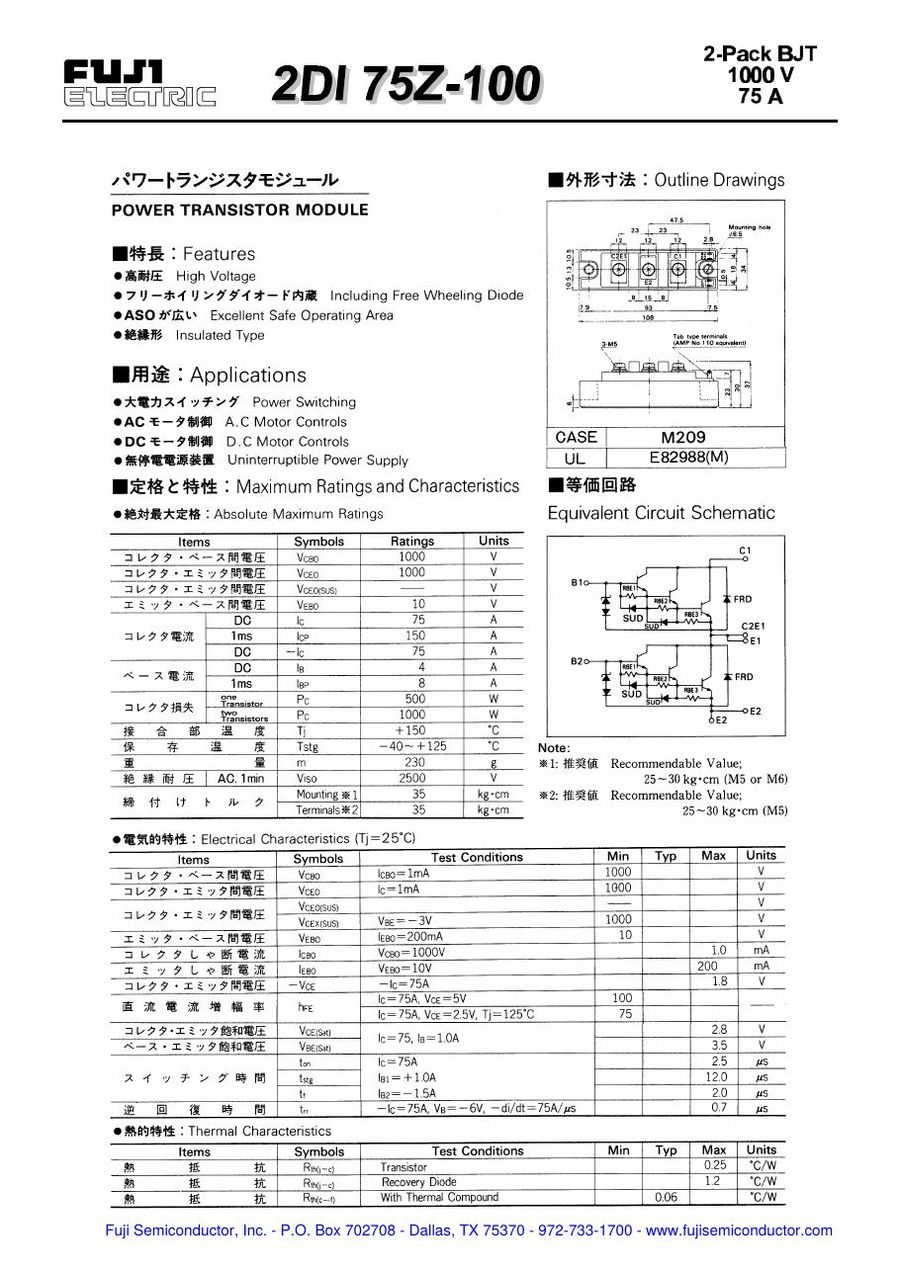

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2DI75Z-100 (reply within 24 hours)
