2DI30Z-120 Fuji Electric - Darlington Module

2DI30Z-120 Description

2DI30Z-120 is a 1200 V, 30 A Darlington transistor module made by Fuji Electric. The module contains two switches in a half-bridge (2-in-1) arrangement. It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the 2DI30Z-120; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Fuji Electric 2DI30Z-120 is used for high-power traction inverters and choppers, medium-voltage motor drives, static VAR compensators and other high-power converters.

Key Specifications

2DI30Z-120 is a 1,200 V, 30 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	30 A

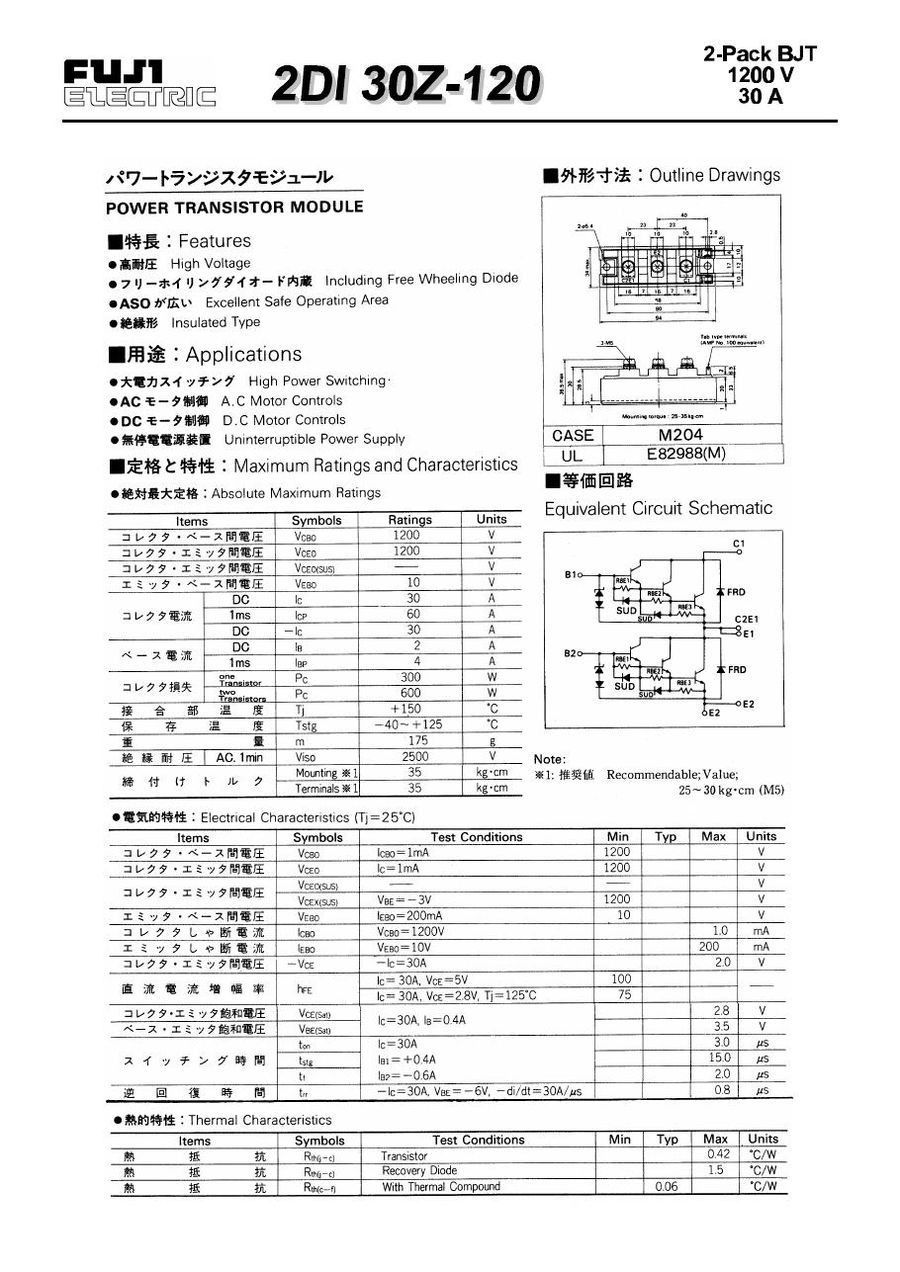

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2DI30Z-120 (reply within 24 hours)
