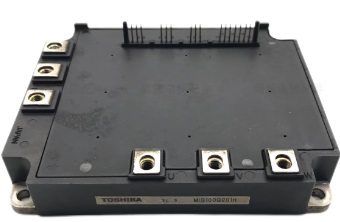

MIG150Q201H Toshiba - Intelligent Power Module

MIG150Q201H Description

The MIG150Q201H is an intelligent power module (IPM) made by Toshiba. An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

We help engineers and repair technicians find parts like the MIG150Q201H, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Target Applications

Toshiba MIG150Q201H is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

Manufacturer	Toshiba
Configuration	Intelligent power module: inverter + brake with IGBT drive and protection (over current, under voltage, over temperature)
Package	Toshiba 2-136A1A
Inverter VCES / IC	1200 V / 150 A (DC, TC = 25 °C)
Brake VCES / IC	1200 V / 50 A (DC, TC = 25 °C)
Isolation voltage	2500 V (AC, 1 min)
Screw torque	M5: 3 N·m

MIG150Q201H Video

Technical document (PDF)  |  Request a quote for MIG150Q201H (reply within 24 hours)
