MIG75Q201H Toshiba - Intelligent Power Module

MIG75Q201H Description

The MIG75Q201H from Toshiba is an intelligent power module (IPM) with a 1200 V / 75 A rating. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

We help engineers and repair technicians find parts like the MIG75Q201H, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Toshiba MIG75Q201H is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

MIG75Q201H is a 1,200 V, 75 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	75 A

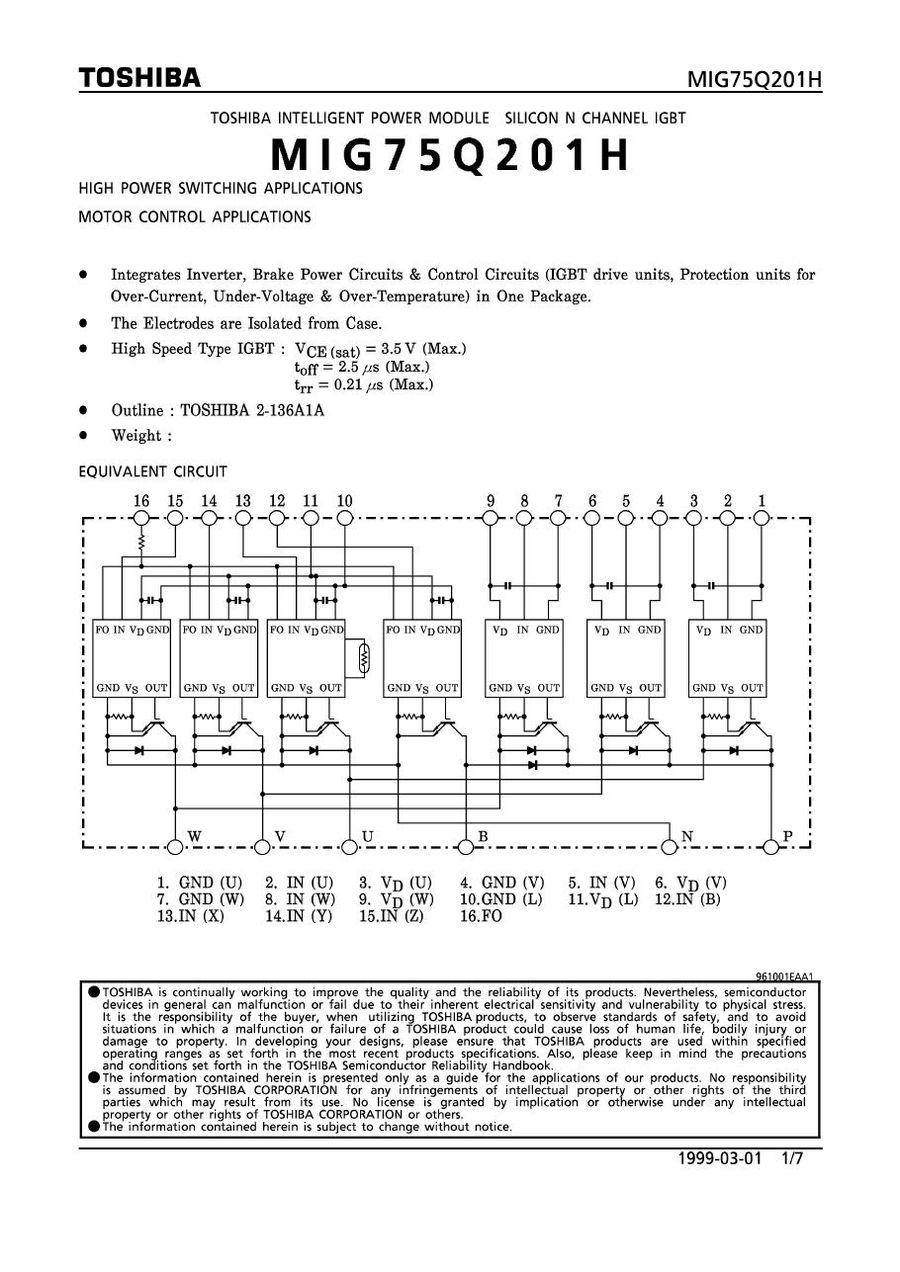

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MIG75Q201H (reply within 24 hours)
