MIG100Q201HToshiba - IGBT Power Transistor Module

MIG100Q201H Description

The Toshiba MIG100Q201H is an intelligent power module (IPM) rated at 1200 V and 100 A. Components of this type are commonly used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the MIG100Q201H.

Target Applications

Toshiba MIG100Q201H is used for High Power Switching Applications and Motor Control Applications.

Key Specifications

Manufacturer	Toshiba
Configuration	Intelligent power module: inverter + brake with IGBT drive and protection (over current, under voltage, over temperature)
Package	Toshiba 2-136A1A
Inverter VCES / IC	1200 V / 100 A (DC, TC = 25 °C)
Brake VCES / IC	1200 V / 50 A (DC, TC = 25 °C)
VCE(sat) max.	3.5 V
Isolation voltage	2500 V (AC, 1 min)
Screw torque	M5: 3 N·m

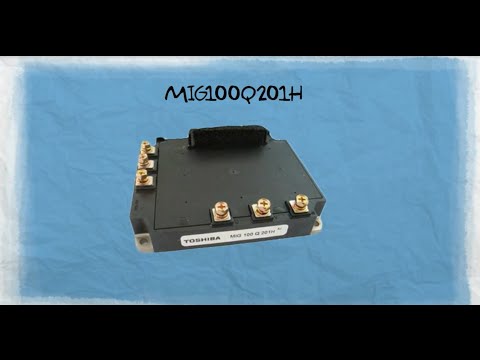

MIG100Q201H Video

Download MIG100Q201H Datasheet

MIG100Q201H PDF Datasheet
