MIG50Q201H Toshiba - IGBT Power Transistor Module

MIG50Q201H Description

Toshiba makes the MIG50Q201H, an intelligent power module (IPM). It is mostly used in small and mid-size AC drives and servo amplifiers, where built-in gate drive and protection save board space.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the MIG50Q201H and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Toshiba MIG50Q201H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

MIG50Q201H is a 1,200 V, 50 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	50 A
Isolation voltage	2,500 V

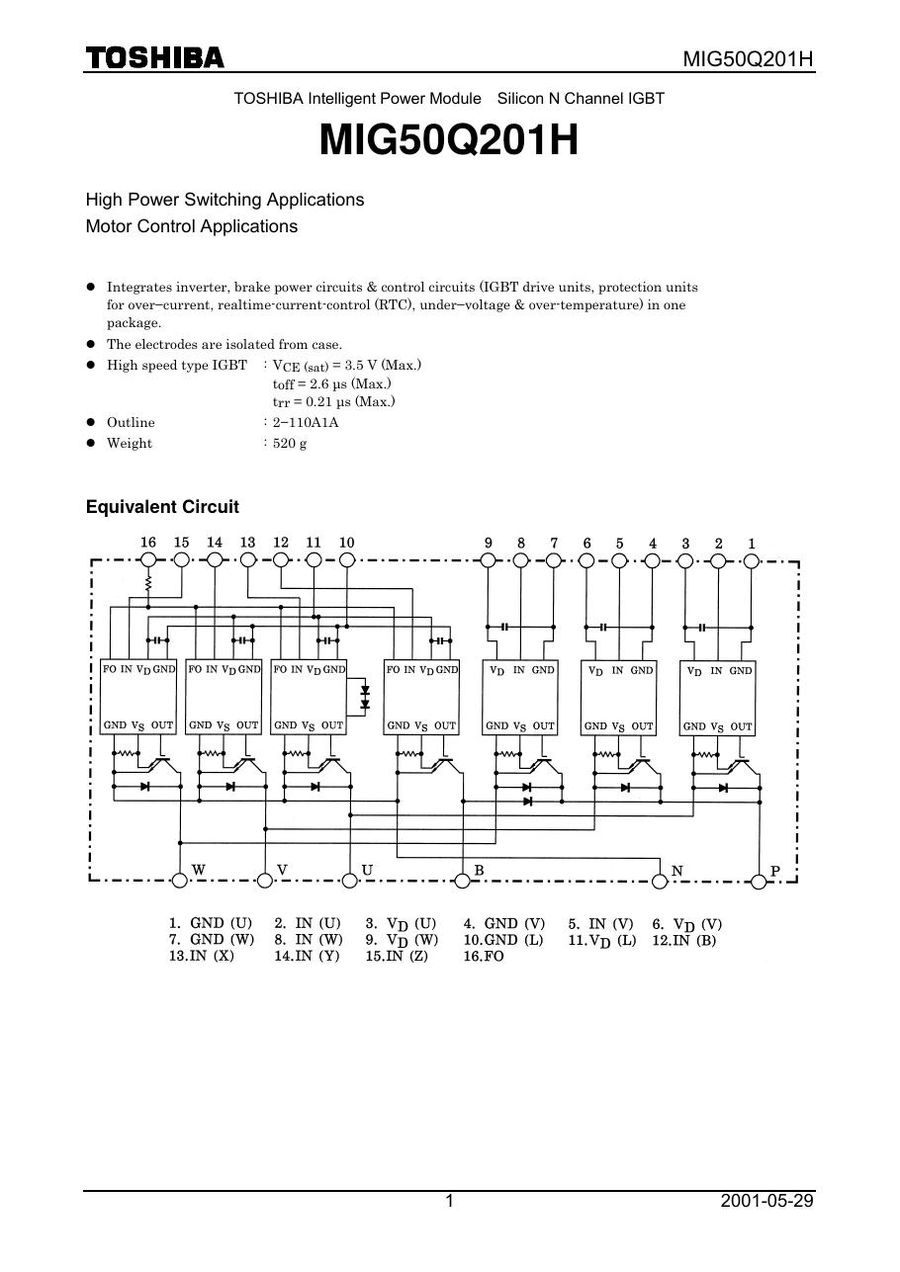

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MIG50Q201H (reply within 24 hours)
