5SNA1000N330300 ABB - IGBT Module

Also written as: 5SNA 1000N330300

Category: IGBT Modules

Specifications: 3300V, 1000A

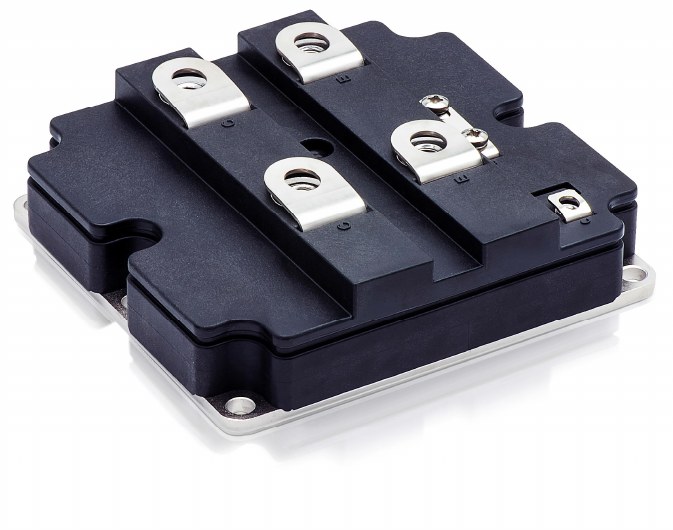

5SNA1000N330300 ABB IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SNA1000N330300 Description

5SNA1000N330300 is a 3300 V / 1000 A IGBT module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SNA1000N330300 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra low-loss, rugged SPT+ chip-set
  • Smooth switching SPT+ chip-set for good EMC
  • AlSiC base-plate for high power cycling capability
  • AlN substrate for low thermal resistance
  • Improved high reliability package

Target Applications

ABB 5SNA1000N330300 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SNA1000N330300 is a 3300 V / 1000 A IGBT module from Hitachi Energy (former ABB Semiconductors) - HiPak IGBT Module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeIGBT module
ConfigurationSingle IGBT
Collector-emitter voltage (VCES)3300 V
DC collector current (IC)1000 A
PackageHiPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SNA 1000N330300".

Technical document (PDF)  |  Request a quote for 5SNA1000N330300 (reply within 24 hours)

Related Part Numbers

5SNA1200N330400
3300V, 1200A		5SNA0800N3301005SNA1600N170100
1700V, 1600A		5SNA1600N170300
1700V, 1600A
5SNA2400N170300
1700V, 2400A		5SNA1000J450300
4500V, 1000A		5SNA1000G650300
6500V, 1000A		5SNA1000G450300
5SNA1200E250100
2500V, 1200A		5SNA1200E330100
3300V, 1200A		5SNA1200G3301005SNA1200G450300
4500V, 1200A
5SNA1200G450350
4500V, 1200A		5SNA1500E3301005SNA1500E330305
3300V, 1500A		5SNA1500E450300
4500V, 1500A
