5SNA1200G450350 ABB - IGBT Module

Also written as: 5SNA 1200G450350

Category: IGBT Modules

Specifications: 4500V, 1200A

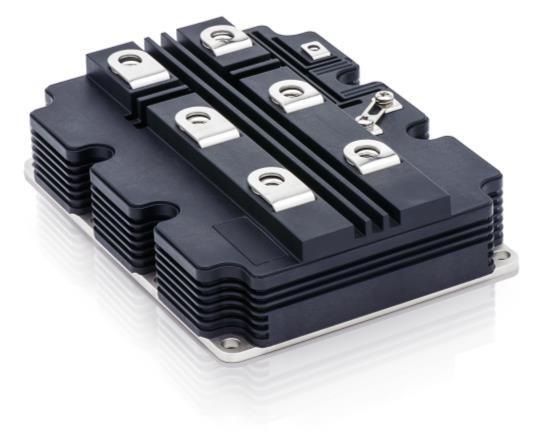

5SNA1200G450350 ABB IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SNA1200G450350 Description

5SNA1200G450350 is a 4500 V / 1200 A IGBT module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SNA1200G450350 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra low-loss, rugged SPT+ chip-set
  • Smooth switching SPT+ chip-set for good EMC
  • Industry standard package
  • High power density
  • AlSiC base-plate for high power cycling capability
  • AlN substrate for low thermal resistance
  • Improved high reliability package

Target Applications

ABB 5SNA1200G450350 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SNA1200G450350 is a 4500 V / 1200 A IGBT module from Hitachi Energy (former ABB Semiconductors). Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeIGBT module
ConfigurationSingle IGBT
Collector-emitter voltage (VCES)4500 V
DC collector current (IC)1200 A
PackageHiPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SNA 1200G450350".

Technical document (PDF)  |  Request a quote for 5SNA1200G450350 (reply within 24 hours)

Related Part Numbers

5SNA1200G450300
4500V, 1200A		5SNA1500G450350
4500V, 1500A		5SNA1200G3301005SNA1000G450300
5SNA1000G650300
6500V, 1000A		5SNA1500G450300
4500V, 1500A		5SNA1800G330400
3300V, 1800A		5SNA0750G650300
6500V, 750A
5SNA1200N330400
3300V, 1200A		5SNA1200E330100
3300V, 1200A		5SNA1200E250100
2500V, 1200A		5SNA1500E330100
5SNA1500E330305
3300V, 1500A		5SNA1500E450300
4500V, 1500A		5SNA1000N330300
3300V, 1000A		5SNA1000J450300
4500V, 1000A
