5SNA1200N330400 ABB - IGBT Module

Also written as: 5SNA 1200N330400

Category: IGBT Modules

Specifications: 3300V, 1200A

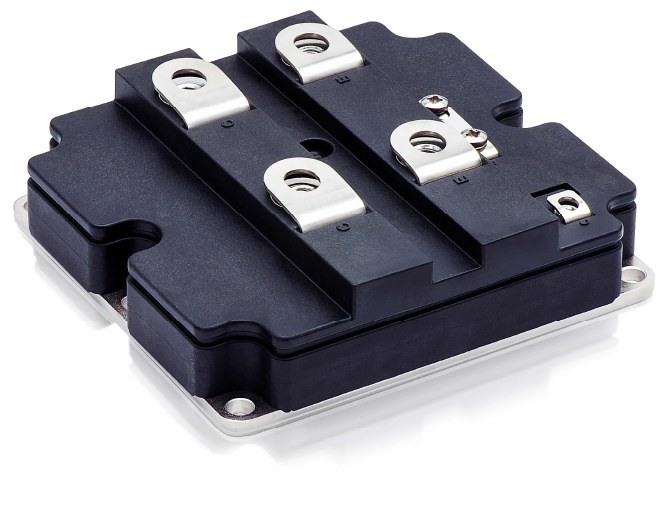

5SNA1200N330400 ABB IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SNA1200N330400 Description

5SNA1200N330400 is a 3300 V / 1200 A IGBT module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SNA1200N330400 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra-low loss TSPT+ technology
  • Very soft switching FCE diode with increased diode area
  • Exceptional ruggedness and highest current rating
  • AlSiC base-plate for high power cycling capability
  • AlN substrate for low thermal resistance

Target Applications

ABB 5SNA1200N330400 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SNA1200N330400 is a 3300 V / 1200 A IGBT module from Hitachi Energy (former ABB Semiconductors) - HiPak IGBT module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeIGBT module
ConfigurationSingle IGBT
Collector-emitter voltage (VCES)3300 V
DC collector current (IC)1200 A
PackageHiPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SNA 1200N330400".

Technical document (PDF)  |  Request a quote for 5SNA1200N330400 (reply within 24 hours)

Related Part Numbers

5SNA1000N330300
3300V, 1000A		5SNA1600N170100
1700V, 1600A		5SNA1600N170300
1700V, 1600A		5SNA0800N330100
5SNA2400N170300
1700V, 2400A		5SNA1200G450350
4500V, 1200A		5SNA1200G450300
4500V, 1200A		5SNA1200G330100
5SNA1200E330100
3300V, 1200A		5SNA1200E250100
2500V, 1200A		5SNA1500E3301005SNA1500E330305
3300V, 1500A
5SNA1500E450300
4500V, 1500A		5SNA1500G450300
4500V, 1500A		5SNA1500G450350
4500V, 1500A		5SNA1600M170100
