5SNA1500E450300 ABB - IGBT Module

Also written as: 5SNA 1500E450300

Category: IGBT Modules

Specifications: 4500V, 1500A

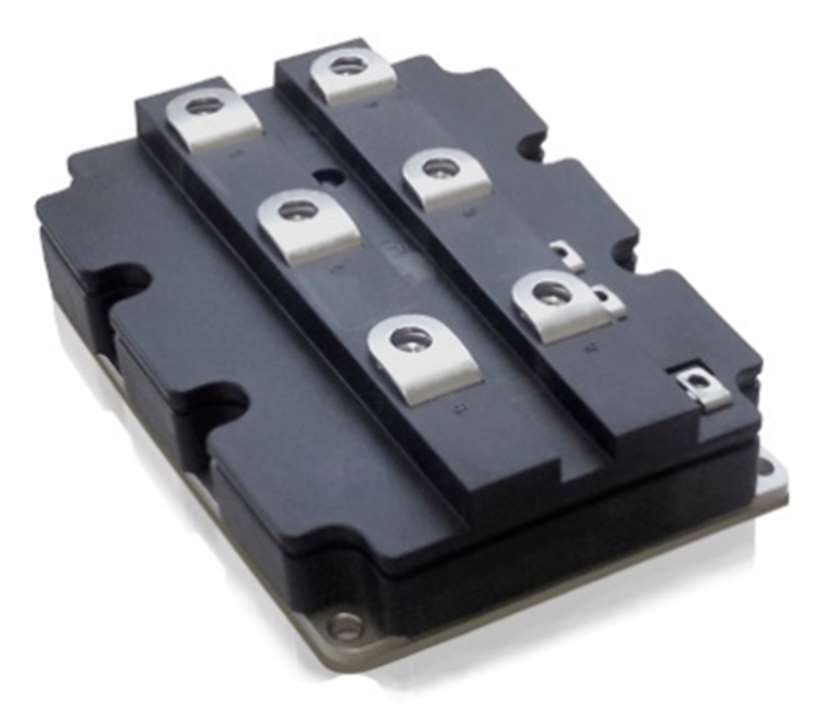

5SNA1500E450300 ABB IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SNA1500E450300 Description

5SNA1500E450300 is a 4500 V / 1500 A IGBT module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SNA1500E450300 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra-low loss SPT++ technology
  • Very soft switching FCE diode with increased diode area
  • Exceptional ruggedness and highest current rating
  • AlSiC base-plate for high power cycling capability
  • AlN substrate for low thermal resistance

Target Applications

ABB 5SNA1500E450300 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SNA1500E450300 is a 4500 V / 1500 A IGBT module from Hitachi Energy (former ABB Semiconductors) - HiPak IGBT Module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeIGBT module
ConfigurationSingle IGBT
Collector-emitter voltage (VCES)4500 V
DC collector current (IC)1500 A
PackageHiPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SNA 1500E450300".

Technical document (PDF)  |  Request a quote for 5SNA1500E450300 (reply within 24 hours)
