5SNA1000G650300 ABB - IGBT Module

Also written as: 5SNA 1000G650300

Category: IGBT Modules

Specifications: 6500V, 1000A

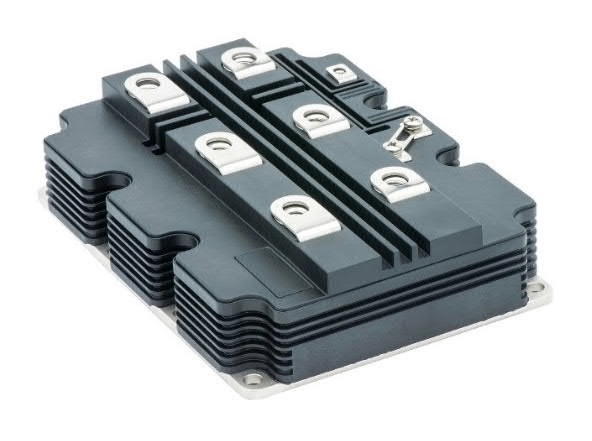

5SNA1000G650300 ABB IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SNA1000G650300 Description

5SNA1000G650300 is a 6500 V / 1000 A IGBT module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SNA1000G650300 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra-low-loss, rugged SPT++ chip-set
  • Exceptional ruggedness and highest current rating
  • High insulation package
  • AlSiC base-plate and AlN substrate for low thermal resistance and high power cycling capability

Target Applications

ABB 5SNA1000G650300 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SNA1000G650300 is a 6500 V / 1000 A IGBT module from Hitachi Energy (former ABB Semiconductors) - HiPak IGBT module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeIGBT module
ConfigurationSingle IGBT
Collector-emitter voltage (VCES)6500 V
DC collector current (IC)1000 A
PackageHiPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SNA 1000G650300".

Technical document (PDF)  |  Request a quote for 5SNA1000G650300 (reply within 24 hours)
