5SLD1000J650300 ABB - Diode Module

Also written as: 5SLD 1000J650300

Category: Diode & Rectifier Modules

Specifications: 6500V, 2 x 1000A

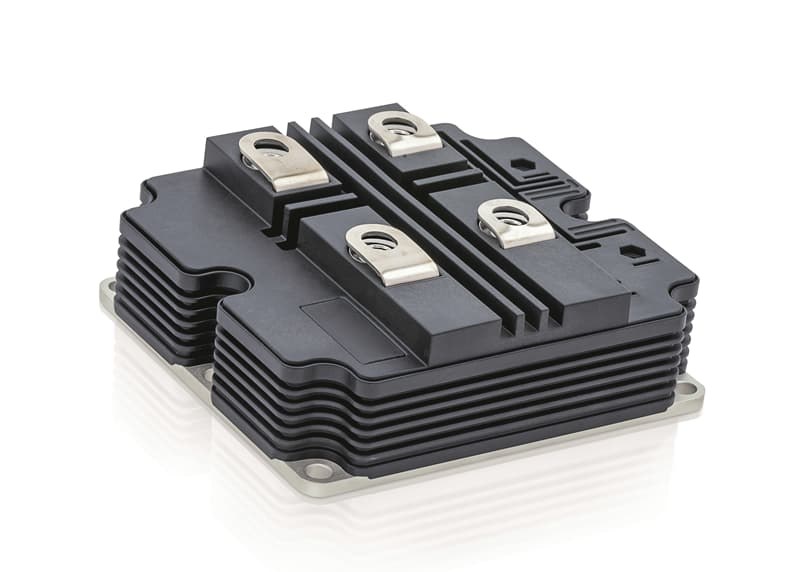

5SLD1000J650300 ABB Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SLD1000J650300 Description

5SLD1000J650300 is a 6500 V / 2 x 1000 A diode module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SLD1000J650300 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra-low-loss, rugged SPT++ diode
  • Exceptional ruggedness and highest current rating
  • High insulation package, 2 Diodes in 1 package
  • AlSiC base-plate and AlN substrate for low thermal resistance and high power cycling capability

Target Applications

ABB 5SLD1000J650300 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SLD1000J650300 is a 6500 V / 2 x 1000 A diode module from Hitachi Energy (former ABB Semiconductors) - HiPak Diode module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeDiode Module
ConfigurationDual diode
Repetitive peak reverse voltage (VRRM)6500 V
DC forward current (IF)2 x 1000 A
PackageHiPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SLD 1000J650300".

Technical document (PDF)  |  Request a quote for 5SLD1000J650300 (reply within 24 hours)
