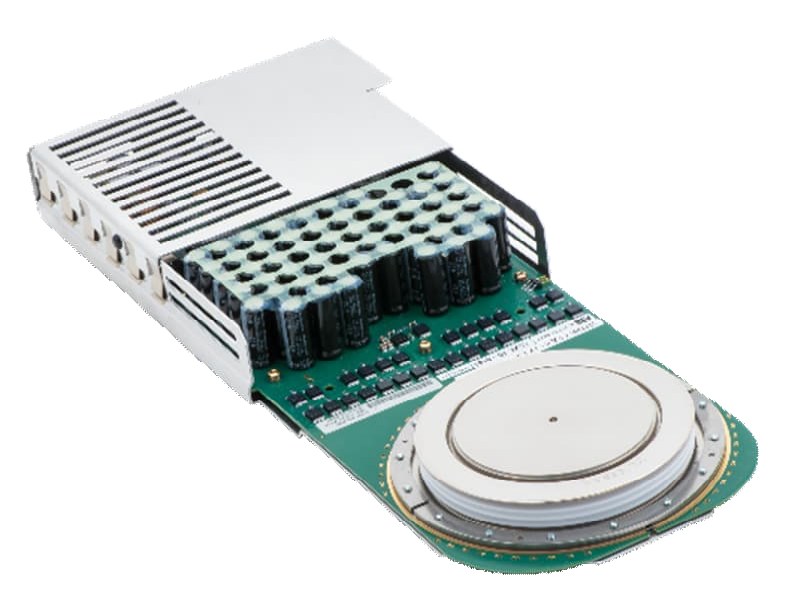

5SHY65L4522 ABB - Thyristor
Also written as: 5SHY 65L4522
5SHY65L4522 Description
5SHY65L4522 is a 4500 V / 6000 A integrated gate-commutated thyristor (IGCT) from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SHY65L4522 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- High snubberless turn-off rating
- Optimized for high switching frequency
- High electromagnetic immunity
- Simple control interface with status feedback
- AC or DC supply voltage
- Option for series connection (contact factory)
Target Applications
ABB 5SHY65L4522 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SHY65L4522 is a 4500 V / 6000 A integrated gate-commutated thyristor (IGCT) from Hitachi Energy (former ABB Semiconductors) - Asymmetric Integrated Gate-Commutated Thyristor. Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | Integrated gate-commutated thyristor (IGCT) |
| Repetitive peak off-state voltage (VDRM) | 4500 V |
| Max. controllable turn-off current (ITGQM) | 6000 A |
| DC link voltage VDC | 2800 V |
| Average on-state current ITAVM | 2320 A |
| Package (mm) | 85/26 |
| Supply status | New product (Hitachi Energy) |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SHY 65L4522".
Technical document (PDF) | Request a quote for 5SHY65L4522 (reply within 24 hours)
Related Part Numbers
| 5SHY65L4521 4500V, 6500A | 5SHY35L4522 4500V, 4000A | 5SHY60L6500 6500V, 6000A | 5SHY55L4500 4500V, 5000A |
| 5SHY50L5500 5500V, 3600A | 5SHY45L4520 4500V, 4500A | 5SHY42L6500 6500V, 3800A | 5SHY35L4520 4500V, 4000A |
| 5SHZ60L2500 2500V, 5600A | 5SHX36L4521 4500V, 3600A | 5SHX36L4520 4500V, 3600A | 5SHX26L4520 4500V, 2200A |
| 5SHX19L6020 5500V, 1800A | 5SLA3600E170300 1700V, 3600A | 5SLD0600J650100 6500V, 2 x 600A | 5SLD0650J450300 4500V, 2 x 650A |
