5SNA0500J650300 ABB - IGBT Module

Also written as: 5SNA 0500J650300

Category: IGBT Modules

Specifications: 6500V, 500A

5SNA0500J650300 ABB IGBT Module

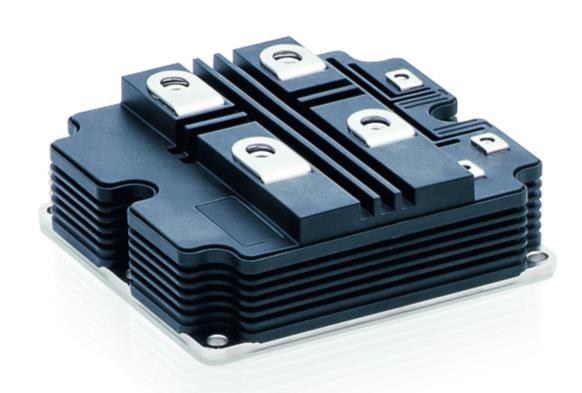

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SNA0500J650300 Description

5SNA0500J650300 is a 6500 V / 500 A IGBT module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SNA0500J650300 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra low-loss, rugged SPT+ chip-set
  • Smooth switching SPT+ chip-set for good EMC
  • High insulation package
  • AlSiC base-plate for high power cycling capability
  • AlN substrate for low thermal resistance
  • Improved high reliability package

Target Applications

ABB 5SNA0500J650300 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SNA0500J650300 is a 6500 V / 500 A IGBT module from Hitachi Energy (former ABB Semiconductors) - HiPak IGBT Module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeIGBT module
ConfigurationSingle IGBT
Collector-emitter voltage (VCES)6500 V
DC collector current (IC)500 A
PackageHiPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SNA 0500J650300".

Technical document (PDF)  |  Request a quote for 5SNA0500J650300 (reply within 24 hours)

Related Part Numbers

5SNA0400J650100
6500V, 400A		5SNA0650J450300
4500V, 650A		5SNA0800J3301005SNA0800J450300
4500V, 800A
5SNA1000J450300
4500V, 1000A		5SNA0600G650100
6500V, 600A		5SNA0750G650300
6500V, 750A		5SNA0800E330100
5SNA0800N3301005SNA1000G4503005SNA1000G650300
6500V, 1000A		5SNA1000N330300
3300V, 1000A
5SNA1200E250100
2500V, 1200A		5SNA1200E330100
3300V, 1200A		5SLG0600P450300
4500V, 2 x 600A		5SLG0500P330300
3300V, 2 x 500A
