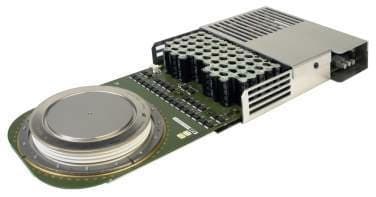

5SHZ60L2500 ABB - Thyristor
Also written as: 5SHZ 60L2500
5SHZ60L2500 Description
5SHZ60L2500 is a 2500 V / 5600 A integrated gate-commutated thyristor (IGCT) from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SHZ60L2500 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Reverse Blocking Integrated Gate-Commutated Thyristor
- High snubberless turn-off rating
- Optimized for low-voltage breakers
- High electromagnetic immunity
- Simple control interface with status feedback
- AC or DC supply voltage
Target Applications
ABB 5SHZ60L2500 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SHZ60L2500 is a 2500 V / 5600 A integrated gate-commutated thyristor (IGCT) from Hitachi Energy (former ABB Semiconductors). Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | Integrated gate-commutated thyristor (IGCT) |
| Repetitive peak off-state voltage (VDRM) | 2500 V |
| Max. controllable turn-off current (ITGQM) | 5600 A |
| DC link voltage VDC | 1250 V |
| Average current ITAVM / IFAVM | 3600 A |
| Package (mm) | 85/26 |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SHZ 60L2500".
Technical document (PDF) | Request a quote for 5SHZ60L2500 (reply within 24 hours)
