5SLD1000N330300 ABB - Diode Module

Also written as: 5SLD 1000N330300

Category: Diode & Rectifier Modules

Specifications: 3300V, 2 x 1000A

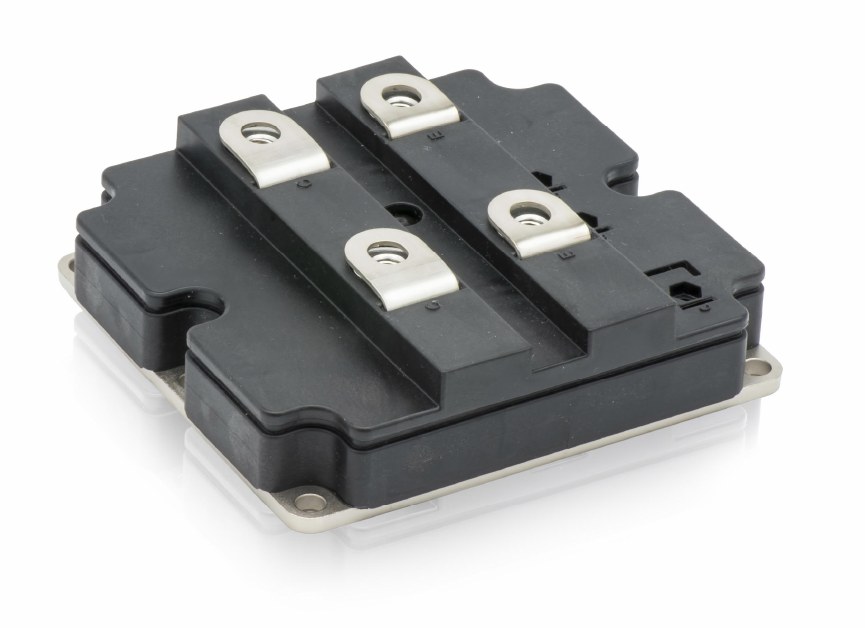

5SLD1000N330300 ABB Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SLD1000N330300 Description

5SLD1000N330300 is a 3300 V / 2 x 1000 A diode module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SLD1000N330300 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra low-loss, rugged SPT+ diode
  • Smooth switching SPT+ diode for good EMC
  • AlSiC base-plate for high power cycling capability
  • AlN substrate for low thermal resistance
  • Improved high reliability package

Target Applications

ABB 5SLD1000N330300 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SLD1000N330300 is a 3300 V / 2 x 1000 A diode module from Hitachi Energy (former ABB Semiconductors) - HiPak DIODE Module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeDiode Module
ConfigurationDual diode
Repetitive peak reverse voltage (VRRM)3300 V
DC forward current (IF)2 x 1000 A
PackageHiPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SLD 1000N330300".

Technical document (PDF)  |  Request a quote for 5SLD1000N330300 (reply within 24 hours)
