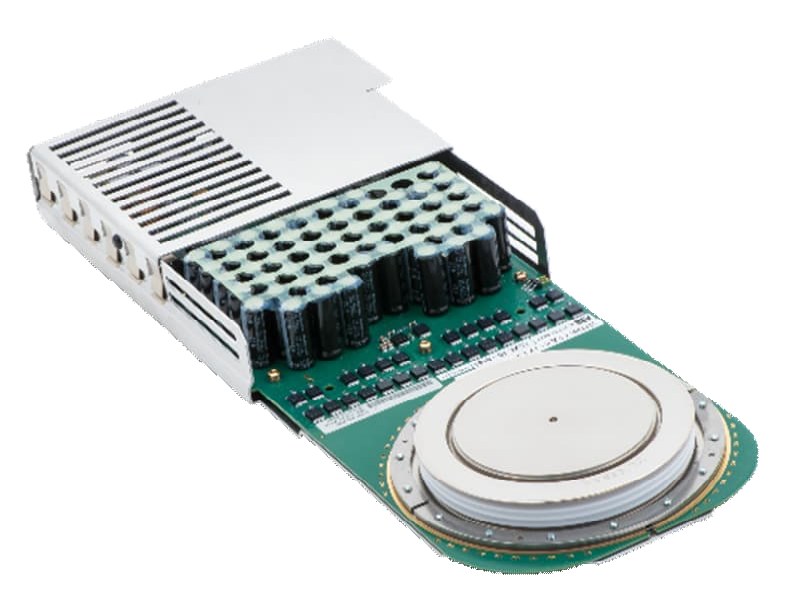

5SHY65L4521 ABB - Thyristor

5SHY65L4521 Description

5SHY65L4521 is a 4500 V / 6500 A integrated gate-commutated thyristor (IGCT) from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SHY65L4521 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

ABB 5SHY65L4521 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SHY65L4521 is a 4500 V / 6500 A integrated gate-commutated thyristor (IGCT) from Hitachi Energy (former ABB Semiconductors) - Asymmetric Integrated Gate-Commutated Thyristor. Source: Hitachi Energy (ABB) datasheet and product table.

Parameter	Value
Manufacturer	Hitachi Energy (former ABB Semiconductors)
Product type	Integrated gate-commutated thyristor (IGCT)
Repetitive peak off-state voltage (VDRM)	4500 V
Max. controllable turn-off current (ITGQM)	6500 A
DC link voltage VDC	2800 V
Average on-state current ITAVM	2660 A
Package (mm)	85/26
Supply status	New product (Hitachi Energy)
Datasheet	Available on this page (PDF)

Note: Hitachi Energy writes this part number as "5SHY 65L4521".

Technical document (PDF)  |  Request a quote for 5SHY65L4521 (reply within 24 hours)
