SK80GD12F4T Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 80A

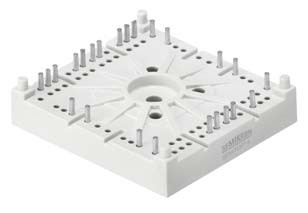

SK80GD12F4T Semikron IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

SK80GD12F4T Description

SK80GD12F4T is a 1200 V / 80 A six-pack IGBT module from Semikron Danfoss (SEMITOP 4 package). Typical applications: inverter.

USComponent supplies SK80GD12F4T and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • One screw mounting module
  • Improved thermal performances by aluminium oxide substrate
  • Trench4 Fast IGBT technology
  • CAL4F technology FWD
  • Integrated NTC temperature sensor

Target Applications

Semikron SK80GD12F4T is used for Inverter.

Key Specifications

SK80GD12F4T is a 1200 V / 80 A six-pack IGBT module from Semikron Danfoss (SEMITOP 4 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSEMITOP
ConfigurationSix-pack
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)80 A
Chip technologyIGBT 4 Fast (Trench)
PackageSEMITOP 4
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SK80GD12F4T (reply within 24 hours)
