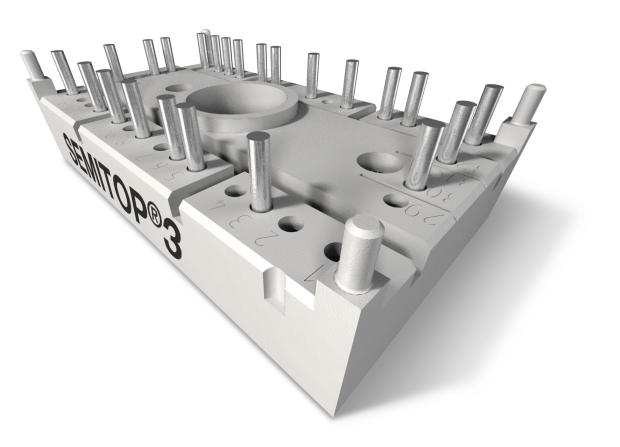

SK80GB125T Semikron - IGBT Module

SK80GB125T Description

SK80GB125T is a 1200 V / 75 A half-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package). Typical applications: switching (not for linear use), Inverter.

USComponent supplies SK80GB125T and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SK80GB125T is used for Switching (not for linear use), Inverter.

Key Specifications

SK80GB125T is a 1200 V / 75 A half-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITOP
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	75 A
Chip technology	NPT IGBT (Ultrafast)
Package	SEMITOP 3
Supply status (Semikron)	Not for new designs
Datasheet	Available on this page (PDF)

Status: Semikron Danfoss lists SK80GB125T as not for new designs. USComponent can still source SK80GB125T and help you find a suitable alternative.

Note: Semikron writes this part number as "SK 80 GB 125 T".
