SK75GAR12T4 Semikron - IGBT Module

Also written as: SK 75 GAR 12T4

Category: IGBT Modules

Specifications: 1200V, 75A

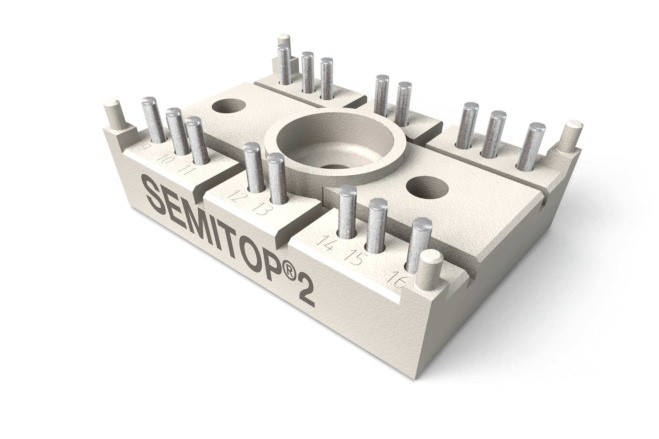

SK75GAR12T4 Semikron IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

SK75GAR12T4 Description

SK75GAR12T4 is a 1200 V / 75 A chopper IGBT module from Semikron Danfoss (SEMITOP 2 package).

USComponent supplies SK75GAR12T4 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • One screw mounting module
  • Trench4 IGBT technology

Target Applications

Semikron SK75GAR12T4 finds applications in various industries and systems where high power switching is required.

Key Specifications

SK75GAR12T4 is a 1200 V / 75 A chopper IGBT module from Semikron Danfoss (SEMITOP 2 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSEMITOP
ConfigurationChopper
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)75 A
Chip technologyIGBT 4 (Trench)
PackageSEMITOP 2
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Note: Semikron writes this part number as "SK 75 GAR 12T4".

Technical document (PDF)  |  Request a quote for SK75GAR12T4 (reply within 24 hours)
