SK25GD12F4ETp Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 25A

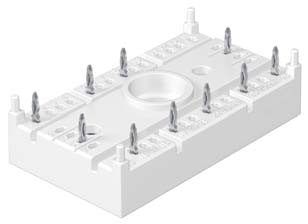

SK25GD12F4ETp Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SK25GD12F4ETp Description

SK25GD12F4ETp is a 1200 V / 25 A six-pack IGBT module from Semikron Danfoss (SEMITOP 3 package). Typical applications: motor drives, Servo drives, Air conditioning, Auxiliary inverters.

USComponent supplies SK25GD12F4ETp and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • One screw mounting module
  • Solder free mounting with Press-Fit terminals
  • Fully compatible with other SEMITOP Press-Fit types
  • Trench4 IGBT technology
  • CAL4F technology FWD
  • Integrated NTC temperature sensor

Target Applications

Semikron SK25GD12F4ETp is used for Motor drives, Servo drives, Air conditioning, Auxiliary inverters.

Key Specifications

SK25GD12F4ETp is a 1200 V / 25 A six-pack IGBT module from Semikron Danfoss (SEMITOP 3 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSEMITOP
ConfigurationSix-pack
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)25 A
Chip technologyIGBT 4 Fast (Trench)
PackageSEMITOP 3
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SK25GD12F4ETp (reply within 24 hours)
