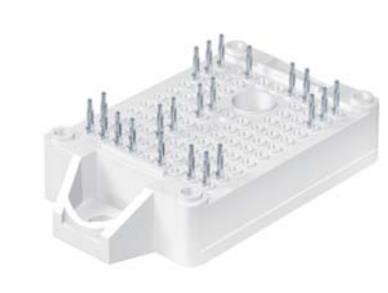

SK80MB120CR03TE1 Semikron - SiC MOSFET Module
SK80MB120CR03TE1 Description
SK80MB120CR03TE1 is a 1200 V / 100 A half-bridge SiC MOSFET module from Semikron Danfoss (SEMITOP E1 package). Typical applications: switched mode power supplies, Energy storage systems, Electric vehicle charging, Solar.
USComponent supplies SK80MB120CR03TE1 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Optimized design for superior thermal performance
- Extremely low inductance design
- Press-Fit contact technology
- 1200V Planar Gen3 SiC MOSFET
- Simple to drive with +15V gate voltage
- Optimized switching stability thanks to module integrated gate resistors
- Integrated NTC temperature sensor
- UL recognized file no. E 63 532
Target Applications
Semikron SK80MB120CR03TE1 is used for Switched mode power supplies, Energy storage systems, Electric vehicle charging, Solar.
Key Specifications
SK80MB120CR03TE1 is a 1200 V / 100 A half-bridge SiC MOSFET module from Semikron Danfoss (SEMITOP E1 package). Source: Semikron Danfoss datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | Semikron Danfoss |
| Product type | SiC MOSFET module |
| Configuration | Half-bridge |
| Drain-source voltage (VDS) | 1200 V |
| Drain current (ID) | 100 A |
| Chip technology | Gen 3 SiC MOSFET (WS) |
| Package | SEMITOP E1 |
| Supply status (Semikron) | Active (new) |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for SK80MB120CR03TE1 (reply within 24 hours)
Related Part Numbers
| SK150MB120CR03TE2 1200V, 185A | SK200MB120CR03TE2 1200V, 223A | SK250MB120CR03TE2 1200V, 267A | SK80MLLE120CR03TE1 1200V, 77A |
| SK40MD120CR03ETE1 1200V, 51A | SK40MLLE120CR03TE1 1200V, 43A | SK80GM063 600V, 81A | SK80TMLI12F4Tp 1200V, 80A |
| SK80GD12F4T 1200V, 80A | SK80GB125T 1200V, 75A | SK80DTA16 1600V, 65A | SK80DTA12 1200V, 65A |
| SK80DTA08 800V, 65A | SK80D12F 1200V, 800A | SK80BTAGL07F3T 1200V, 80A | SK85MH10 |
