SK25GH12T4 Semikron - IGBT Module

Also written as: SK 25 GH 12T4

Category: IGBT Modules

Specifications: 1200V, 25A

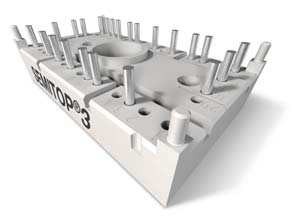

Representative image – actual product may differ

Part Number *

Quantity *

Email *

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

Need overnight delivery?

SK25GH12T4 Description

SK25GH12T4 is a 1200 V / 25 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package). Typical applications: inverter.

USComponent supplies SK25GH12T4 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Compact design
One screw mounting
Heat transfer and isolation through direct copper bonded aluminium oxide ceramic (DCB)
High short circuit capability
Trench4 IGBT technology
CAL4F diode technology
VCE,sat with positive coefficient

Semikron SK25GH12T4 is used for Inverter.

SK25GH12T4 is a 1200 V / 25 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 3 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITOP
Configuration	H-bridge
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	25 A
Chip technology	IGBT 4 (Trench)
Package	SEMITOP 3
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Note: Semikron writes this part number as "SK 25 GH 12T4".
