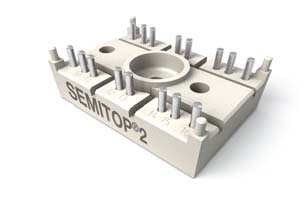

SK25GB12T4 Semikron - IGBT Module

SK25GB12T4 Description

SK25GB12T4 is a 1200 V / 25 A half-bridge IGBT module from Semikron Danfoss (SEMITOP 2 package).

USComponent supplies SK25GB12T4 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SK25GB12T4 finds applications in various industries and systems where high power switching is required.

Key Specifications

SK25GB12T4 is a 1200 V / 25 A half-bridge IGBT module from Semikron Danfoss (SEMITOP 2 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITOP
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	25 A
Chip technology	IGBT 4 (Trench)
Package	SEMITOP 2
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Note: Semikron writes this part number as "SK 25 GB 12T4".
