SK25TMLID12F4TE2 Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 25A

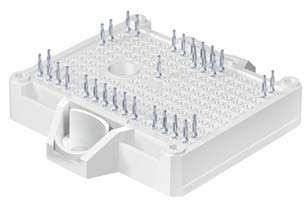

SK25TMLID12F4TE2 Semikron IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

SK25TMLID12F4TE2 Description

SK25TMLID12F4TE2 is a 1200 V / 25 A 3-level IGBT module from Semikron Danfoss (SEMITOP E2 package). Typical applications: solar.

USComponent supplies SK25TMLID12F4TE2 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Optimized design for superior thermal performance
  • Low inductive design
  • Press-Fit contact technology
  • Robust and soft switching CAL4F diode technology
  • Integrated NTC temperature sensor
  • UL recognized file no. E 63 532

Target Applications

Semikron SK25TMLID12F4TE2 is used for Solar.

Key Specifications

SK25TMLID12F4TE2 is a 1200 V / 25 A 3-level IGBT module from Semikron Danfoss (SEMITOP E2 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)25 A
Chip technologyIGBT 4 Fast (Trench)
PackageSEMITOP E2
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SK25TMLID12F4TE2 (reply within 24 hours)
