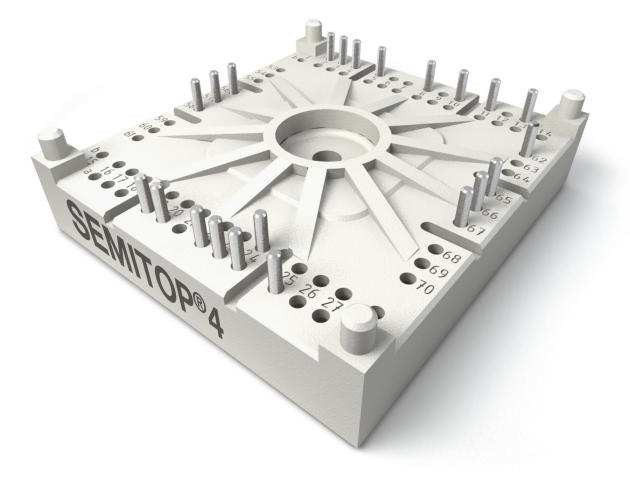

SK100GH12T4T Semikron - IGBT Module

SK100GH12T4T Description

SK100GH12T4T is a 1200 V / 100 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 4 package). Typical applications: voltage regulator.

USComponent supplies SK100GH12T4T and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SK100GH12T4T is used for Voltage regulator.

Key Specifications

SK100GH12T4T is a 1200 V / 100 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 4 package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITOP
Configuration	H-bridge
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	100 A
Chip technology	IGBT 4 (Trench)
Package	SEMITOP 4
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Note: Semikron writes this part number as "SK 100 GH 12T4 T".
